MONARCH

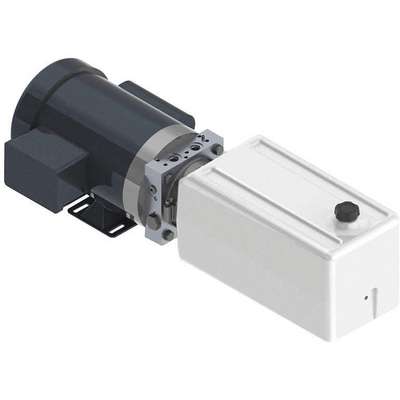

Hydraulic Power Unit: 0.5 gpm, 3,000 psi Max. Pressure, 1 hp, 1.6 gal Reservoir Capacity

Hover over image to magnify
Power Unit,1Stage,115/208-
PI_Asset_977625
PI_Asset_977626
PI_Asset_977627
PI_Asset_977628
PI_Asset_977629
Power Unit,1Stage,115/208-
PI_Asset_977625
PI_Asset_977626
PI_Asset_977627
PI_Asset_977628
PI_Asset_977629

#923122-6 | Pkg Qty: 1

$899.62 pkg | $899.62 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
MONARCH
Pack Quantity
1
Item
Hydraulic Power Unit
Shipping Weight
48.2 lb.
Mfr. Part Number
M-4504-0159
General
Built-In Features
Load Holding Check Valve and Adjustable Relief Valve
Nominal Flow
0.5 gpm
Circuit Design
Single or Double Acting
Number of Phases
1
Frame Design - Hydraulic Power Units
Compact
Power Source - Power Units
AC Power
HP
1 hp
Pressure Port Thread Size
9/16"-18 (SAE 6)
Hertz
50/60
Pump Stage
1
Hydraulic Pump Type
Gear
Pump Stage and Type
1 Stage Gear
Max. Pressure
3,000 psi
Return Port Thread Size
9/16"-18 (SAE 6)
Mounting Orientation - Power Units
Horizontal

Product Description

Compact AC hydraulic power units have a smaller tank than standard units, which allows these units to be mounted directly to the equipment being operated. The smaller tank size makes them suitable for powering auto hoists, scissor lifts, dock levers, and other light-to-medium duty applications with smaller hydraulic units.

AC hydraulic power units (HPUs) connect to an electrical power source to power industrial tools and equipment such as automobile lifts, elevators, lift tables, and other equipment that is primarily stationary. Sometimes called hydraulic power packs, these units pressurize hydraulic oil to power systems and pumps. AC hydraulic power units generally have a larger capacity and are more powerful than DC hydraulic power units, which are battery-powered. AC HPUs provide higher amounts of force than traditional electrical and mechanical systems, allowing them to lift and move heavier loads in a smaller footprint. They also provide precise movement and speed control over a wide range of speeds and load weights.

Item Barcode
9231226
Power Unit,1Stage,115/208-
 NameItemDescription
Grainger DropshipGrainger Dropship36ND92Power Unit, 1Stage,115/
UNSPSC CODESUNSPSC CODES39121004
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Power Unit, 1Stage,115/
