RAYCHEM

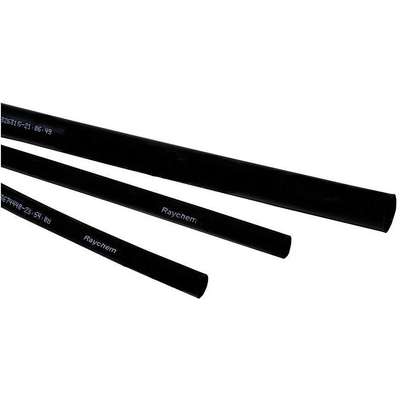

4 ft. Medium Wall Heat Shrink Tubing, Flexible Polyolefin, Shrink Ratio 3:1
Hover over image to magnify
#923117-5 | Pkg Qty: 25
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
RAYCHEM
Shipping Weight
5.1 lb.
Color Family
Black
Shrink Temperature
203F
Flame Retardant
No
Shrink Tubing Adhesive Lined
Yes
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
0.750 in.
Inside Diameter After Shrinking
0.230 in.
Shrink Tubing Material Type
Flexible
Inside Diameter Before Shrinking
0.750 in.
Shrink Tubing Type
Heat Shrink Tubing
Inside Diameter Expanded Pre-Shrink
3/4 in.
Shrink Tubing Usable Temperature Range
-40 to 230F
Item
Heat Shrink Tubing
Temperature Range
-40 deg. F to 230 deg. F
Length
4 ft.
Tube Material
Flexible Polyolefin
Maximum Voltage
600 V
Use Shrink Tubing With Wire Size
4 to 3/0 AWG
Mfr. Part Number
CPGI-DWP-125-3/4-BK-STK
Wall Thickness After Shrinking
0.080 in.
Minimum Shrink Temperature
203F
Wall Type
Medium Wall
Pack Quantity
25
Width
3/4 in.
Resists
Chemical, Corrosion, Copper Stability, Cracking
General
Adhesive Lined
Yes
Shrink Tubing Properties
Abrasion Resistant, Solvent Resistant
Features
Flexible, Environmentally Friendly, Abrasion Resistant, Cut-Through Resistant, Thermal Resistant, Fluid Resistant, Stain Relief
Shrink Tubing Wall Thickness After Shrinking
0.08 in
I.D. After Shrinking
0.23 in
Standards
UL Recognized to Standard 224 (File E35586)
I.D. Before Shrinking
0.75 in
Tubing Flexibility
Flexible
Package Style
Individual Pieces
Tubing Wall Type
Medium Wall
Shrink Tubing I.D. Before Shrinking
0.75 in
Use With Wire Size
4 AWG to 3/0 AWG
Product Description
This heat-shrink tubing is designed for jacketing wire bundles and light-duty harnesses. It helps to resist damage from abrasion and solvents. It also features a flexible design that conforms to irregular shapes. Use to identify and color-code electrical connections and wire bundles.
Item Barcode
Shrink Tubing,0.75in Id,Black,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 23PF08 | Shrink Tubing,0. |
 | UNSPSC CODES | 39121723 | |
 | VMRS (ATA) CODES | 053-007-002 | Shrink Tubing,0. |
