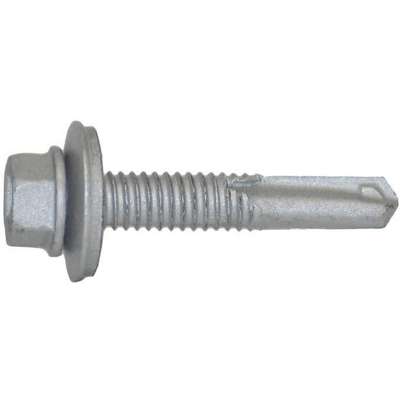

1-1/2" Steel Self Drilling Screw with Hex Washer Head Type and Climaseal Finish
Hover over image to magnify
#923085-7 | Pkg Qty: 250
$116.20 pkg | $0.46 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Material
Steel
Brand
APPROVED SUPPLIER
Mfr. Part Number
1415000
Drill Point Size
Teks 1
Pack Quantity
250
Finish
Climaseal
Self-Drilling Screw Drive Type
Hex
Head Angle
90 deg.
Self-Drilling Screw Head Type
Hex Washer
Head Color
Gray
Shipping Weight
3.65 lb.
Head Diameter
0.563 in.
System of Measurement
Fractional
Head Height
0.19 in.
Thread Size
#12-24
Hex Width
0.313 in.
Type
Self Drilling with Bonded Washer
Item
Self Drilling Screw
Washer Outside Diameter
0.563 in.
Length Under Head
1-1/2 in.
General
Application
Attaches Steel to Steel. Attachment Range is .018 to .260 in.. Drill and Tap Capacity is .018 to .095 in.
Maximum Head Width
0.313 in
Drill Tip Length
21/32 in
Minimum Head Width
0.313 in
Head Angle (Deg.)
90
Washer O.D.
0.563 in
Maximum Drilling Thickness
0.375 in
Product Description
Self-Drilling Hex Washer Sheet Metal Screws
- Package quantities are exact All meet SAE J78 standard
- 1-pc., 1-side-installation fasteners have a drilling point tip that drills its own hole and forms its own internal mating threads. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Electro Zinc corrosion-resistant finish is applied to No. 36K129 with a process that conforms to ASTM B633 specifications. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
Documents
Item Barcode
Drilling Screw,#12-24,1-1/2 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 36K163 | Drilling Screw,#12-24, |
 | UNSPSC CODES | 31161507 | |
 | VMRS (ATA) CODES | 053-007-006 | Drilling Screw,#12-24, |
