DAYTON

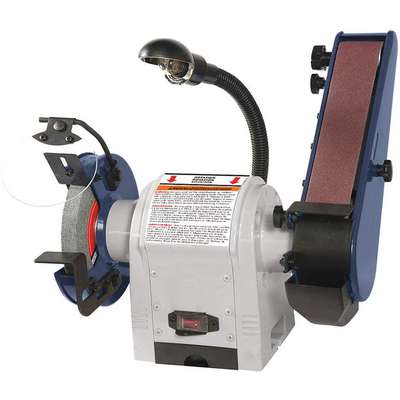

Dayton Combination Belt and Bench Grinder: Single Speed, For 6 in Max. Wheel Dia., 27 in Belt Lg
Hover over image to magnify
#923084-7 | Pkg Qty: 1
$416.73 pkg | $416.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE
Mfr. Part Number
49H006
Brand
DAYTON
Package Quantity
1
Corded/Cordless
Corded
Phase
1
Hz
60
Shipping Weight
24 lb.
Item
Combination Belt and Bench Grinder
General
Belt Length
27 in
For Max. Wheel Dia.
6 in
Belt Orientation
60 Degrees
For Max. Wheel Thickness
5/8 in
Belt Table Angle Setting
0 Degrees to 45 Degrees
Frequency
60 Hz
Belt Table Material
Steel
Grinding Wheel Grit
60
Belt Table Size
3 in x 1-1/2 in
Idler Drum Size
2 in Diameter
Belt Table Tilting Angle
0 Degrees to 45 Degrees
Includes
Abrasive Belt, Eye Shield, Grinding Wheel, Grinding Wheel Dresser, Spark Deflector, Tool Rest, Work Light, Workpiece Cooling Tray
Current
2.5A
Lights Included
Yes
Disc Table Angle Setting
90 Degrees
Max. Belt Speed
3,240 fpm
Disc Table Material
Stamped Steel
Max. Belt Width
2 in
Disc Table Size
2 in x 1-1/2 in
Max. Disc Speed
3,600 RPM
Disc Table Tilting Angle
0 Degrees
Max. Wheel Speed
3,600 RPM
Dust Collection Port Size
1-1/4 in
Min. Belt Speed
3,240 fpm
Dust Management
No Dust Management
Min. Belt Width
2 in
Dust Sealed Switch
No
Min. Disc Speed
3,600 RPM
Electrical Connection
Cord
Min. Wheel Speed
3,600 RPM
Electrical Protection
Grounded
Speed Setting
Single Speed
Features
Flexible Work Light, Adjustable Tool Rests, Eye Shield and Spark Arrestor, Simple Thumb Knob Adjustment for Belt Tracking
Spindle Thread Size
M10x1.5
Product Description
Combination Belt and Bench Grinder, Speed Setting Single Speed, For Max. Wheel Dia. 6 in, Grinding Wheel Grit 60, Belt Length 27 in, Horsepower 1/4, Dust Management No Dust Management, Lights Included Yes, Overall Length 11 in, Overall Width 15 in, Overall Height 14 in
Item Barcode
Combination Belt And Bench
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49H006 | Combination Belt and |
 | UNSPSC CODES | 27112704 | |
 | VMRS (ATA) CODES | 053-006-009 | Combination Belt and |
