Item # Description Pkg Qty Price Weight
Per Pkg
923076-2 Cylindrical Proximity Sensor, 1
Login to See Pricing
0.01 lb
Boxes:

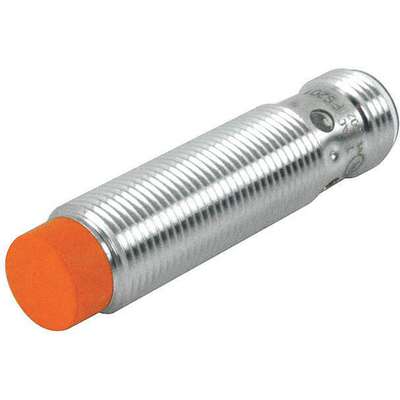

Cylindrical Proximity Sensor,

700 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 4.0mm

  • Shipping Weight 0.01 lbs.
Country of Origin Germany Country of Origin is subject to change.
Note: Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order. More


Technical Specs

  • Item Cylindrical Proximity Sensor
  • Proximity Sensing Method Inductive
  • Proximity Sensor Diameter 12.0mm
  • Proximity Sensor Power Requirement 10 to 30VDC
  • Shielded / Unshielded Unshielded
  • Proximity Sensor Operating Frequency 700 Hz
  • Proximity Sensor Output Circuit Type 3 Wire PNP/NPN
  • Max. Detecting Distance 4.0mm
  • Proximity Sensor Electrical Connection 4 Pin M12 Connector
  • Basic Proximity Sensor Case Material Metal
  • Output Mode NO
  • IP Rating 67
  • Case Material Brass White Bronze Coated
  • Length 50mm
  • Operating Temp. Range -13 Degrees to 158 Degrees F
  • Max. Current Load 100mA
  • Includes (2) Lock Nuts

Basic Material Metal
Basic Proximity Sensor Case Material Metal
Case Material Brass White Bronze Coated
Circuit Type 3 Wire PNP/NPN
Detecting Distance 4mm
Diameter 12mm
Electrical Connection 4 Pin M12 Connector
IP Rating 67
Includes (2) Lock Nuts
Item Cylindrical Proximity Sensor
Length 50 mm
Max. Current Load 100mA
Max. Detecting Distance 4 mm
Operating Frequency 700 Hz
Operating Temp Range -13° to 158°F
Output Mode NO
Power Requirement 10 to 30VDC
Proximity Sensing Method Inductive
Proximity Sensor Diameter 12.0mm
Proximity Sensor Electrical Connection 4 Pin M12 Connector
Proximity Sensor Operating Frequency 700 Hz
Proximity Sensor Output Circuit Type 3 Wire PNP/NPN
Proximity Sensor Power Requirement 10 to 30VDC
Proximity Sensor Style Cylindrical Proximity Sensor
Sensing Method Inductive
Shielded/Unshielded Unshielded
Brand IFM
Loading Items...
Grainger Dropship Grainger Dropship 39DU05
UNSPSC CODES UNSPSC CODES 41111926
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Cylindrical Proximity
Item Barcode
9230762
