SOUTHWIRE COMPANY

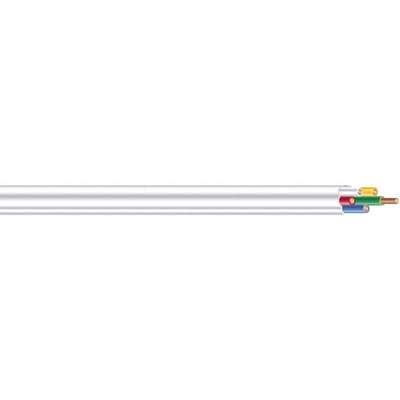

Plenum Thermostat Wire with 5 Conductors and Wire Size of 18 AWG, White

Hover over image to magnify
Thermostat Wire,250 Ft,Gauge
PI_Asset_1353926
Thermostat Wire,250 Ft,Gauge
PI_Asset_1353926

#923074 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Number of Conductors
5
Cable Rating
CL2P
Package Type
Spool
Cable Type
Plenum
Packaging
Spool
Cable/Wire Type
Plenum
Shipping Weight
8.75 lb.
Gauge/Conductor
18/5
Spool/Coil Length
250 ft.
Item
Thermostat Wire
Type
Plenum Rated
Jacket Color
White
Voltage
300
Length
250 ft.
Wire Size
18 AWG
Maximum Temperature
60 deg. C
Wire and Cable Item
Thermostat Wire
Mfr. Part Number
555050423
Wire/Cable Size
18 AWG
Nominal Outside Diameter
0.18
General
Cable Type - Wire and Cable
Plenum
Standards
CL2P Plenum Rated
Conductor Design
Solid
Temp. Rating
140°F
Max. Temp.
60°C
Wire Size - Wire and Cable
18 AWG

Product Description

Plenum-rated thermostat wire is electrical cable that has been rated to run through the air-circulation spaces in buildings, usually located between the structural and suspended ceiling or under a raised floor. It is used to connect thermostat controls to a main power circuit via the ceiling or floor. It has a flame-retardant jacket that, in the event of a fire, emits fewer harmful fumes and is less toxic than nonplenum-rated thermostat wire.
