NELSON STUD WELDING INC.

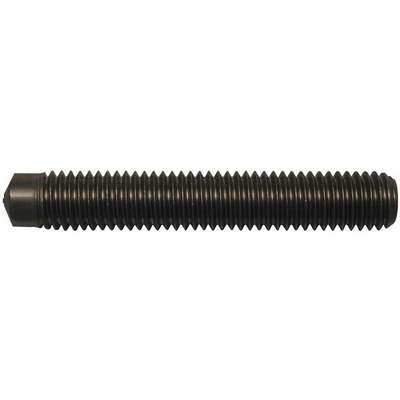

Mountable Threaded Stud, Arc Weld, Fully Threaded, 18-8 Stainless Steel, Plain, 3/8"-16

Hover over image to magnify
Welding Stud,Cfl,3/8-16,1 1/4
Welding Stud,Cfl,3/8-16,1 1/4

#923071-3 | Pkg Qty: 1000

$970.00 pkg | $0.97 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
NELSON STUD WELDING INC.
Shipping Weight
34 lb.
Finish
Plain
Thread Length
1-1/4 in.
Item
Weld Stud
Thread Size
3/8"-16
Material
18-8 Stainless Steel
Type
CFL
Mfr. Part Number
101-010-344-G1000
Yield Strength
35,000 psi
Package Quantity
1000
General
Base Dia.
3/8 in
System of Measurement
Inch
Min. Tensile Strength
70,000 psi
Thread Size - Threaded Rods and Studs
3/8"-16
Minimum Tensile Strength (PSI)
70,000 psi
Thread Size x Stud Length
3/8"-16 x 1 1/4"
Minimum Tensile Strength - Threaded Rods and Studs
70,000 psi
Thread Standard
UNC
Mountable Stud Type
Drawn Arc Weld Stud
Thread Standard + Class + Direction
UNC 2A Right Hand
Required Chuck
500001011
Threaded Rod Finish
Plain
Required Ferrule
100101025
Threaded Rod Material
18-8 Stainless Steel
Required Ferrule Grip
501001007
Threaded Rod Thread Type
UNC
Required Foot
502001137
Weld Base Diameter
3/8 in
Stud Length
1 1/4 in
Weld Stud Type
CFL Fully Threaded
Stud Length - Threaded Studs
1-1/4"
Yield Strength
35,000 psi
Stud Welding Process
Drawn Arc
Yield Strength - Threaded Rods and Studs
35,000 psi

Product Description

Fully threaded arc-weld studs are suitable for fastening applications where threads are needed for the full fastener length. They have a short base section that is melted off during the welding process, helping ensure usable threads extend to the top of the installed studs.

Arc-weld threaded studs are fasteners that create a permanent male thread using a drawn arc welding process. Also known as ring weld studs or drawn-arc weld studs, this type of weld melts both the base of the fastener and an area of the workpiece, forming a strong joint that can withstand vibration, water, oil, air, and gas leaks. These studs are typically used for large-diameter fasteners and on thick base materials where a tight seal is needed at the weld point.

Item Barcode
9230713
Welding Stud,Cfl,3/8-16,1 1/4
 NameItemDescription
Grainger DropshipGrainger Dropship12N481Welding Stud, CFL,3/8-16,1
UNSPSC CODESUNSPSC CODES31161514
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Welding Stud, CFL,3/8-16,1
