SPEEDAIRE

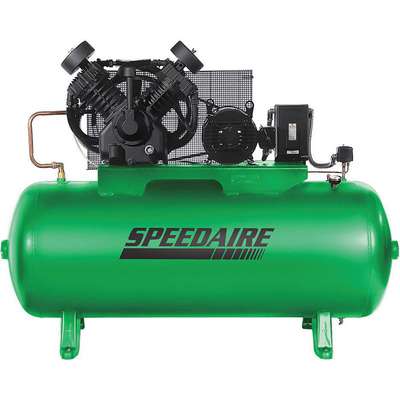

3 Phase - Electrical Horizontal Tank Mounted 10.0HP - Air Compressor Stationary Air Compressor, 120

Hover over image to magnify
Elec. Air Compressor,2 Stage,
Elec. Air Compressor,2 Stage,

#923057-3 | Pkg Qty: 1

$5,385.32 pkg | $5,385.32 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
35WC57
Amperage
28.1 A
Number of Stages
2
Brand
SPEEDAIRE
Overall Height
54 in.
Compressor Package Type
Base Model
Overall Length
69 in.
Compressor Type
Tank Mounted
Overall Width
25 in.
Control
Pressure Switch
Package Quantity
1
Cylinder Material
Cast Iron
Phase
3
Enclosure
Open Drip Proof
Pump Location
Tank Mounted
Finish
Powder Coated
Pump RPM
700
Free Air CFM @ Max Pressure
34.1
Shipping Weight
835 lb.
Horsepower
10
Tank Size
120 gal.
Hz
60
Tank Style
Horizontal
Input Voltage
200 to 208 VAC
Tank Type
Horizontal
Item
Electric Air Compressor
Voltage
200-208
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
Number of Stages - Air Compressor
2
Air Tank Size
120 gal
Off Pressure Switch Setting
175 psi
Air Tank Style
Horizontal
On Pressure Switch Setting
135 psi
Compressor Voltage
200V AC
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
34.1
Output Power
10 hp
Free Air Flow Rate @ Max Pressure
36 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
36 cfm
Pump Location - Air Compressor
Tank Mounted
HP
10
Pump Oil Capacity
4 qt
HP - Air Compressor
10.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
Standards
ASME, CSA
Input Voltage - Air Compressor
200V AC
Style - Air Compressor
Simplex
Life Expectancy
15,000 hr
Tank Size - Air Compressor
120 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Horizontal
Max Operating Pressure
175 psi
dBA @ 3 Feet
89
Max. Pressure - Air Compressor
175 psi

Product Description

Delivers higher pressure than 1-stage models with low RPM for long life. Features a totally enclosed, safety-designed belt guard.

  • Expected pump life: 15,000 hr. ▪ 100% duty cycle (with use of synthetic oil) ▪ Must be hardwired
