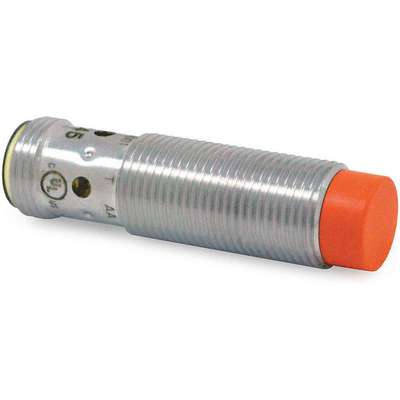

700 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 7.0mm

Hover over image to magnify
Proximity Sensor,Inductive,7mm,
Proximity Sensor,Inductive,7mm,

#922965-3 | Pkg Qty: 1

$40.06 pkg | $40.06 ea
Item Number 922965-3
Scanner Description Proximity Sensor,Inductive,7mm,
Inventory Status Drop Ship Item
Weight 0.05 lb
Brand IFM

Technical Specifications

Basic Material
Metal
Operating Frequency
700 Hz
Basic Proximity Sensor Case Material
Metal
Operating Temperature Range
-40° to 185°F
Brand
IFM
Output Mode
NO
Case Material
Brass White Bronze Coated
Pack Quantity
1
Circuit Type
3 Wire NPN
Power Requirement
10 to 30VDC
Description/Special Features
Overload And Short Protection
Proximity Sensing Method
Inductive
Detecting Distance
7mm
Proximity Sensor Diameter
12.0mm
Diameter
12 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
700 Hz
IP Rating
65, 66, 67, 68, 69K
Proximity Sensor Output Circuit Type
3 Wire NPN
Includes
(2) Lock Nuts
Proximity Sensor Power Requirement
10 to 30VDC
Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Length
45 mm
Sensing Method
Inductive
Maximum Current Load
100mA
Shielded/Unshielded
Unshielded
Maximum Detecting Distance
7 mm
Special Features
Overload And Short Protection
Mfr. Part Number
IFS247
Standards
cUL Listed

Product Description

This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting.

Item Barcode
9229653
  Name Item Description
Grainger Dropship Grainger Dropship 40KH54 Proximity Sensor,
UNSPSC CODES UNSPSC CODES 41111926
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Proximity Sensor,
