KYOCERA

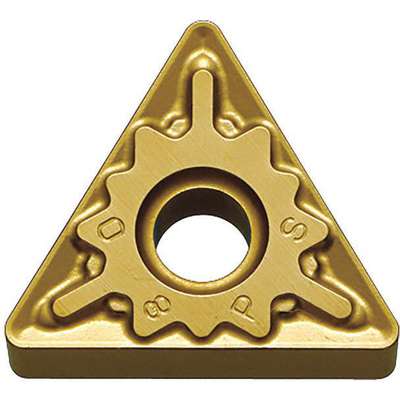

KYOCERA Triangle Turning Insert: 1/2 in Inscribed Circle, Neutral, PS Chip-Breaker, TiCN+Al2O3+TiN
Hover over image to magnify
#922898-5 | Pkg Qty: 10
$123.70 pkg | $12.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
TNMG432PS CA530
Insert Thickness
0.1875 in.
ANSI Number
TNMG432PS-CA530
Item
Triangle Turning Insert
Brand
KYOCERA
Mfr. Part Number
TNMG432PS CA530
Cast Iron Compatibility
No
Mounting Hole Diameter
0.203 in.
Chip-Breaker
Yes
Mounting Style
Clamp
Coating
TiCN/Al2O3/TiN
Non Ferrous Compatability
No
Corner Radius
0.0312 in.
Nose Radius
0.0313 in.
Cutting Direction
Neutral
Number of Cutting Edges
6
Grade
CA530
Number of Edges
6
Hardened Compatibility
No
Package Quantity
10
ISO Number
TNMG220408PS
Primary Material Application
Steel
Included Angle
60
Rake
Negative
Inscribed Circle
1/2 in.
Relief Angle
0 deg.
Insert Application
Medium
Shape
Triangle
Insert Material
Carbide
Shipping Weight
3.2 lb.
Insert Shape
Triangle
Thickness
3/16 in.
Insert Size
432
Turning Insert Shape
Triangle
Insert Style
TNMG
Workpiece Compatibility
Steel (P)
General
Chip-Breaker Code
PS
For Use With
Toolholders, Boring Bars
Chip-Breaker Style
Double Sided
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Manufacturer Grade
CA530
Coating Process
CVD
Material - Machining
Carbide
Cutting Application
Turning
Measurement System
Fractional Inch
Features
Crack Resistant, Wear Resistant
Primary Material Application ISO Code
P
Finish - Machining
TiCN+Al2O3+TiN
Through Hole Inside Dia.
0.2031 in
Product Description
Triangle Turning Insert, Chip-Breaker Code PS, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
Item Barcode
Turning Insert,Triangle,Tnmg,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 53LW24 | Turning Insert, |
 | UNSPSC CODES | 23242105 | |
 | VMRS (ATA) CODES | 053-007-002 | Turning Insert, |
