TE-CO

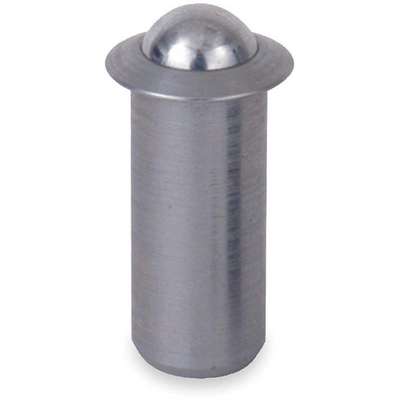

Spring Plunger, Thread Size, Plunger Projection 0.1100", Stainless Steel, PK 5
Hover over image to magnify
#922891-5 | Pkg Qty: 5
$40.75 pkg | $8.15 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Material
440 Stainless Steel
Material
303 Stainless Steel
Body Length
0.79 in.
Mfr. Part Number
53711
Body Material
Stainless Steel
Mounting Type
Press Fit
Brand
TE-CO
Package Quantity
5
Flange Thickness
0.0780 in.
Product Type
Spring Plunger
Force
2.50 Initial, 7.00 Final
Shipping Weight
.1 lb.
Function
Used In Applications When Higher End Forces Are Needed, Often Used To Raise Or Eject Parts
Spring Material
302/304 Stainless
Item
Spring Plunger
Type
Press Fit
Locking
No
General
Application
Often Used To Raise or Eject Parts
Plunger Dia.
0.3120 in
Body Dia.
3/8 in
Plunger Material
Stainless Steel
Final Nose Force
7 lb
Plunger Projection
0.1100 in
Flange Dia.
1/2 in
Retractable
No
Initial Nose Force
2.5 lb
With Flange
Yes
Nose Shape
Ball
Product Description
Press-Fit Plungers
- Sold in pkg. of 5
- Ideal for installation in softer materials such as aluminum, wood, or plastic. Use in applications where higher end forces are needed, and to raise or eject parts. Steel body plungers have black oxide finish. Spring plungers require no thread adjustment, and have longer travel. Ball plungers have a sturdy shoulder for fixed seating, and positively resist detent force.
Item Barcode
Plunger,Press Fit,SS,0.79,PK5
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2YLL8 | Plunger, Press Fit,SS, |
 | UNSPSC CODES | 31161721 | |
 | VMRS (ATA) CODES | 053-006-009 | Plunger, Press Fit,SS, |
