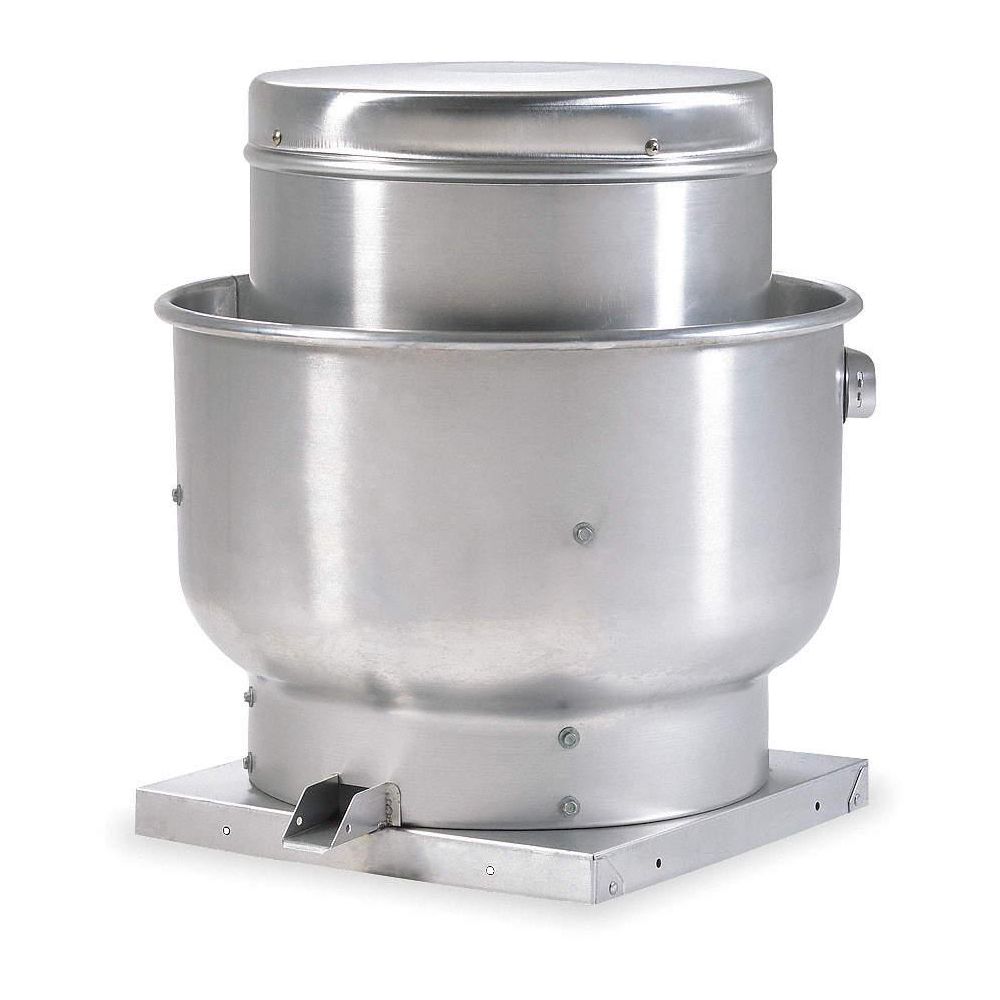

Dayton Centrifugal Upblast Roof Exhaust Fan: Direct Drive, 11 in Wheel, 1,468 cfm, ODP, 1/4 hp, 115V AC

Hover over image to magnify
Upblast Ventilator,Wheel 11 In,
Upblast Ventilator,Wheel 11 In,
Dayton Centrifugal Upblast Roof Exhaust Fan: Direct Drive, 11 in Wheel, 1,468 cfm, ODP, 1/4 hp, 115V AC Video

#922873-8 | Pkg Qty: 1

$1,065.41 pkg | $1,065.41 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
UL/cUL 705/762
Overall Diameter
24-7/8 in.
Assembled/Unassembled
Assembled
Overall Height
22 in.
Brand
DAYTON
Package Quantity
1
Drive Type
Direct-Drive
Phase
1
Item
Upblast Ventilator
Shipping Weight
53 lb.
Mfr. Part Number
4HZ41
Voltage
115
Motor HP
1/4
Wheel Diameter
11 in.
Mounting Location
Roof
General
Airflow @ 0.000 in SP
1,468 cfm
Grease Capacity
Standard Grease
Assembly
Assembled
High-Efficiency Motor
No
Base Dimension
22 in Square
Housing Material Fabrication
Spun
Base Shape
Square
Includes
NEMA 1 Junction Box
Brake Horsepower
29/100 hp
Includes Drive Package
Yes
Compatible Curb Manufacturer Part Number
3AZK1 to 3AZK9, 3AZL1 to 3AZL3
Includes Motor
Yes
Compatible Curb Part Number
2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46, 4HX54, 4HX61
Maximum Ambient Temperature
300 Degrees F
Compatible Damper Part Number
4HX65
Maximum Fan Speed
1,725 RPM
Compatible Speed Control
48C172
Maximum Inlet Air Temperature
300 Degrees F
Current
3.6 A
Maximum Static Pressure
1 in wc
Cutout Length
17.5 in
Motor Efficiency
Standard Motor
Cutout Size
17.5 in L x 17.5 in W
Motor Enclosure Design
Open Dripproof (ODP)
Damper Size
15 x 15 in
Motor Horsepower
1/4 hp
Exhaust Airflow @ 0.000 in SP
1,468 cfm
Motor Location
Out of Airstream
Exhaust Airflow @ 0.000 in SP - Range
0 to 1,999 cfm
Motor Speed
1,725 RPM
Exhaust Airflow @ 0.000 in. SP - Range
0 to 1,999 cfm
Nameplate Voltage
115V AC
Exhaust Airflow @ 0.125 in SP
1,422 cfm
Nominal Voltage
115V AC
Exhaust Airflow @ 0.250 in SP
1,373 cfm
Propeller Shaft Diameter
1/2 in
Exhaust Airflow @ 0.375 in SP
1,315 cfm
Resistance Properties
Spark Resistant
Exhaust Airflow @ 0.500 in SP
1,255 cfm
Spark Resistant Construction Type
A
Exhaust Airflow @ 0.500 in SP - Range
0 to 1,999 cfm
Speed Controllable
Yes
For Air Type
Kitchen Air
Wheel & Housing Material
Aluminum / Aluminum
For High-Static Pressure Applications
No

Product Description

Dayton ventilators are designed for continuous operation to exhaust foul air, fumes, odors and grease-laden vapors. Weather resistant ventilators feature a galvanized metal motor base and supports. Motor compartment is cooled by fresh outside air. Motors are Class I, Groups CandD and Class II, Groups FandG for hazardous locations.
