KECKLEY

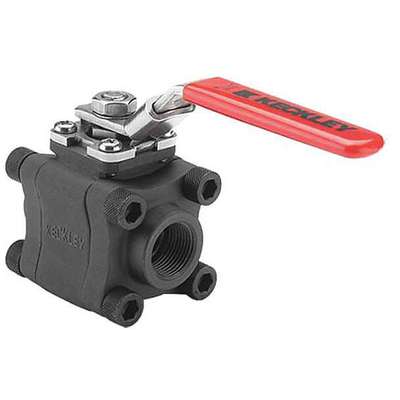

Ball Valve: 1 in Pipe Size, Full, 1,973 psi CWP Max. Pressure, -20° to 450°F, Female NPT

Hover over image to magnify
Ball Valve,1" Size,Cs,Full Port
PI_Asset_1371617
Ball Valve,1" Size,Cs,Full Port
PI_Asset_1371617

#922828-1 | Pkg Qty: 1

$301.68 pkg | $301.68 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Ball Valve Group
Manual
Maximum Pressure
1973 psi CWP
Ball Valve Item
Ball Valve
Mfr. Part Number
BVM3THFCSRGSL-100
Body Material
Carbon Steel
Package Quantity
1
Body Style
Inline
Port
Full
Brand
KECKLEY
Seat Material
RPTFE
Connection Type
FNPT x FNPT
Shipping Weight
5.1 lb.
For Pipe Size
1 in.
Stem Material
316 Stainless Steel
General Connection Type
Female NPT
Stem Type
Blowout Proof
Handle Material
300 Stainless Steel
Temperature Range (Deg. F)
-20 to 450 deg. F
Handle Type
Locking Lever
Valve Style
3-Piece
Item
Ball Valve
General
Ball Valve Product Group
Manual
Standards
API 598, API 608, API 607 Edition Fire Test Approved
Body Seal Material
Graphite
Valve Basic Body Material
Carbon Steel
Max. Steam Pressure
250 psi WSP
Valve Structure
3-Piece

Product Description

This 2-Way ball valve features 2 ports, allowing flow in one direction or enabling shutoff. Carbon steel construction offers high resistance to wear and pressure. 3-Piece valve structure allows the valve to be disassembled for easy maintenance and repairs.

Item Barcode
9228281
Ball Valve,1" Size,Cs,Full Port
 NameItemDescription
Grainger DropshipGrainger Dropship52RV12Ball Valve, 1" Size,CS,
UNSPSC CODESUNSPSC CODES40141607
VMRS (ATA) CODESVMRS (ATA) CODES053-008-006Ball Valve, 1" Size,CS,
