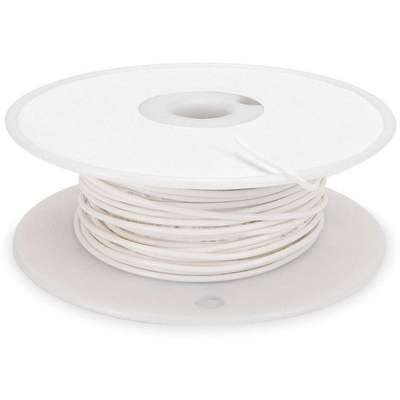

100 ft., 300VAC High Temperature Lead Wire with PTFE Cable Type and 20 AWG Wire Size, White

100 ft., 300VAC High Temperature Lead Wire with PTFE Cable Type and 20 AWG Wire Size, White
High Temp Lead Wire,20Ga,White
PI_Asset_1356101

#922748-8 | Pkg Qty: 1

$95.33 pkg | $95.33 ea
Item Number 922748-8
Scanner Description High Temp Lead Wire,20Ga,White
Inventory Status Drop Ship Item
Weight 1.03 lb
Brand TEMPCO

Technical Specifications

Brand
TEMPCO
Mfr. Part Number
LDWR-1059
Cable/Wire Type
PTFE
Nominal Outside Diameter
0.064 in.
Color Family
White
Pack Quantity
1
Conductor Material
Silver Plated Copper
Spool Length
100 ft.
Item
High Temperature Lead Wire
Standards
UL1180, CSA AWM Class 1 Group A/B FT-1
Jacket Color
White
Stranding
19 x 32
Jacket Type
PTFE Insulation Extruded Over Conductor
Voltage
300 VAC
Maximum Amps
14 At Ambient Temp of 104°F/40°C
Wire and Cable Item
High Temperature Lead Wire
Maximum Temperature (Deg. C)
200°
Wire/Cable Insulation Material
PTFE
Maximum Temperature (Deg. F)
392°
Wire/Cable Size
20 AWG

Product Description

Lead wire is a small- to medium-gauge wire (22 to 10 AWG) with an insulated conductor for use in high-temperature environments up to 842°F. The insulation won't melt and safeguards the conductor core from heat to extend machinery life. High-temperature lead wire is typically used to create electrical connections and provide power in industrial heaters, furnaces, cement kilns, and food-service appliances.

Item Barcode
9227488
  Name Item Description
Grainger Dropship Grainger Dropship 3GRN2 High temp Lead Wire,
UNSPSC CODES UNSPSC CODES 39121435
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 High temp Lead Wire,
