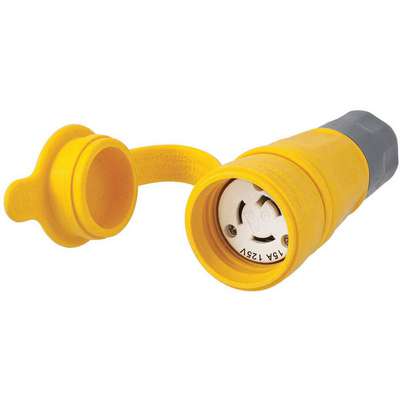

15 Amp Industrial Grade Watertight Locking Connector, L5-15R NEMA Configuration, Yellow

15 Amp Industrial Grade Watertight Locking Connector, L5-15R NEMA Configuration, Yellow
Connector,L5-15R,15A,125VAC,
15 Amp Industrial Grade Watertight Locking Connector, L5-15R NEMA Configuration, Yellow Video

#922747-1 | Pkg Qty: 1

$44.44 pkg | $44.44 ea
Item Number 922747-1
Scanner Description Connector,L5-15R,15A,125VAC,
Inventory Status Drop Ship Item
Weight 0.37 lb
Brand HUBBELL WIRING DEVICE-KELLEMS

Technical Specifications

Amperage
15 A
NEMA Configuration
L5-15R
Antimicrobial
No
NEMA Plug Configuration
L5-15R
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4, 4X, 6, 6P
Color Family
Yellow
Number of Poles
2
Cord Size
0.300 in. to 0.625 in.
Number of Wires
3
Corrosion Resistant
Yes
Pack Quantity
1
Description
Twist Lock Watertight Connector
Phase
1
Grade
Industrial/Commercial
Power Indicator
No
Horsepower
1/2
Shrouded / Non-Shrouded
Non-Shrouded
IP Rating
69K
Special Features
Corrosion Resistant
Item
Watertight Locking Connector
Standards
UL, CSA, NSF
Material
Thermoplastic Elastomer, Valox
Voltage
125 VAC
Material of Construction
Thermoplastic Elastomer, Valox
Wiring Style
Standard
Mfr. Part Number
HBL25W47A

Product Description

Features keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
