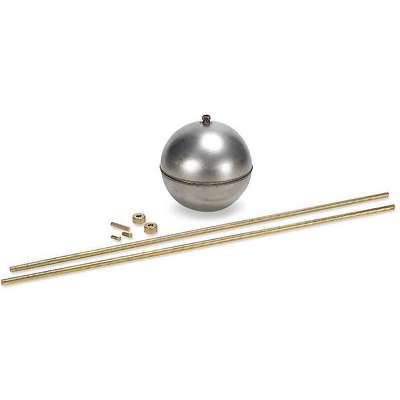

Square D Float and Rod Assembly For Use With Mfr. No. 9036DG, 9038A Class
Hover over image to magnify
#922745-9 | Pkg Qty: 1
$191.20 pkg | $191.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SQUARE D
Maximum Liquid Temperature
220F
Connection
Internal
Mfr. Part Number
9049A6
Float Specific Gravity
0.29
Package Quantity
1
Float Weight
26 to 28 oz.
Series
Dg/Gg
For Use With
Mfr. No. 9036DG, 9038A Class
Shape
Round
Item
Float and Rod Assembly
Shipping Weight
5.5 lb.
Length
60 in.
Switch Type
5 Feet Brass Rod, 7 in. Diameter Float, 304 Stainless Steel, 2 Stops, Open Tank
Material of Construction
Stainless Steel
Type
Sump or Open Tank
General
Includes
(2) Stops, 304 Stainless Steel 7 in dia Float, 5 ft Brass Rod
Threaded
1/8-27
Max. Liquid Temp.
220°F
Product Description
Float Switches
- Rated up to 5 HP at 230VAC 2-pole Rated 10A, 600VAC Ambient temp. range: -22° to 220°F Conduit entry: NEMA 1, 1/2"; NEMA 4, 7, 9, 3/4"
- Designed to control small motor loads directly. HP rating: 2 HP at 115V, 3 HP at 230V 1-phase, 5 HP at 230V 3-phase. Side-mount switches include external pointer, nameplate, rod, and float. Class 9036 switches are single-lever operated.
Item Barcode
Float And Rod Assembly,Round,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2FJ26 | Float and Rod Assembly, |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Float and Rod Assembly, |
