100-240VAC On/Off SPDT Actuator, Spring Return On/Off, 120V, No.22, -22° to 122°F, 22 in.-lb., 75 s

Zoom Icon

#922710-7 | Pkg Qty: 1

$292.10 pkg | $292.10 ea
Item Number 922710-7
Scanner Description Actuator,Spring Return On/Off,
Inventory Status Drop Ship Item
Weight 1.5 lb
Brand BELIMO

Technical Specifications

Brand
BELIMO
Mounting
Direct Mount
Depth
3-19/64 in.
Pack Quantity
1
Direction
CW or CCW
Switch Type
SPDT
Height
6-9/32 in.
Torque
22 in.-lb.
Item
Actuator, Spring Return On/Off, 120V, No.22
Voltage (V)
100-240VAC
Mfg Part Number
TFB120-S
Width
3 in.

Product Description

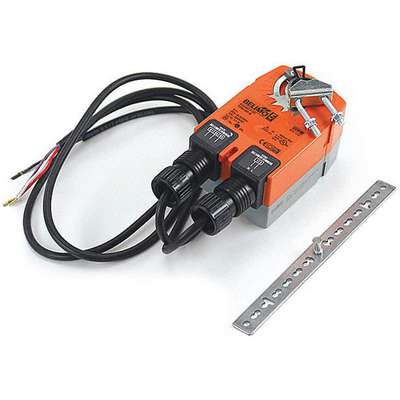

Ideal for on/off, fail-safe damper control in HVAC systems, this BELIMO spring return actuator can provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides a consistent torque to the damper with, and without, power applied to the actuator. Unit provides up to 95° of rotation and has a graduated position indicator displaying 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need for mechanical end switches. Model is double insulated so an electrical ground connection is not required. Actuator comes with a built-in auxiliary SPDT switch for safety interfacing or signaling (for example, in fan start-ups).

Item Barcode
9227107
  Name Item Description
Grainger Dropship Grainger Dropship 42FG39 Actuator, Spring
UNSPSC CODES UNSPSC CODES 31251501
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Actuator, Spring
