POWER FIRST

8 ft. Power Cord with SJT NEC Cord Designation, 14/3 Gauge/Conductor, and 15 Max. Amps

Hover over image to magnify

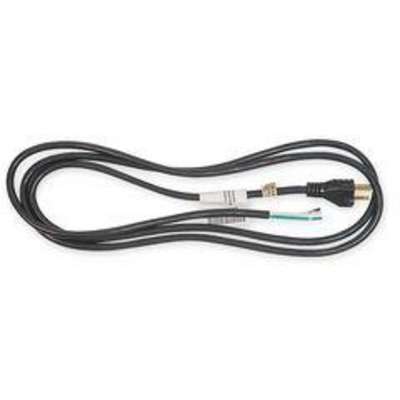

Power Cord,5-15P,Sjt,8 Ft.,Blk,
PI_Asset_969090
Power Cord,5-15P,Sjt,8 Ft.,Blk,
PI_Asset_969090

#922689-8 | Pkg Qty: 1

$11.03 pkg | $11.03 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
POWER FIRST
NEMA Plug Configuration
5-15P
Conductor Material
PVC
Nominal Outside Diameter
0.375 in.
Connection Type
Bare Leads
Number of Conductors
3
Connector End
Bare Leads
Pack Quantity
1
Cord Length
8 ft.
Plug Configuration
NEMA 5-15P
Cord Type
SJT
Shape
Round
Gauge/Conductor
14/3
Shipping Weight
.7 lb.
Item
Power Cord
Temperature Range
32 deg. F to 167 deg. F
Jacket Color
Black
Type
General Purpose
Jacket Material
PVC
Voltage
125 VAC
Jacket Type
PVC
Voltage Rating
125
Length
8 ft.
Wire Size
14 AWG
Maximum Amps
15
Wire and Cable Item
Power Cord
Mfr. Part Number
1FD92
Wire/Cable Jacket Material
PVC
NEC Cord Designation
SJT
General
Application
General Purpose
Jacket Material - Wire and Cable
PVC
Connector End - Wire and Cable
Bare
Standards
UL, C-UL, RoHS
Cord Shape
Round
Trade Designation
SJT
Gauge/Conductor - Wire and Cable
14/3

Product Description

General purpose power cords are lengths of small-diameter cable (12 to 18 gauge) used to connect devices and appliances to an electrical outlet. They are often used to repair or replace a damaged cord, or to create a longer cord than the one provided with a device. They have a molded plug with straight, flat blades at one end and bare wire at the other end for wiring to the device.

Power cords, or power supply cords, are portable lengths of electrical cable used to connect devices and appliances to a power source. They are typically used on equipment that doesn't come with a power cord, such as dryers, ranges, and computer monitors. They have a molded plug at one end that connects to an electrical outlet and a socket or bare wire at the other end that is attached or wired to the device. Select a power cord to match the amperage rating of the device and plug configuration of the outlet.
