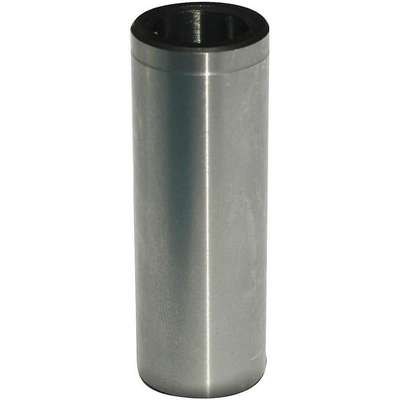

Headless Press Fit Thin Wall Drill Bushing, 3/4", I.D. 1", O.D., 3/4": Drill Size
Hover over image to magnify
#922680 | Pkg Qty: 1
$12.83 pkg | $12.83 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Item
Press-Fit Drill Bushing (P)
Bushing Type
Headless Press Fit
Material
52100 Thru Hardened
Concentricity Tolerance
.0005 in. T.I.R. Max
Mfr. Part Number
PT6410NC
Decimal Equivalent
3/4
Outside Diameter
1 in.
Drill Size
3/4 in.
Outside Diameter Tolerance
+0.0015 in. /+0.0018 in.
Hardness
RC 62-64
Overall Length
5/8 in.
Head Material
High Speed Steel
Package Quantity
1
Inside Diameter
3/4 in.
Rockwell Hardness
RC 62-64
Inside Diameter Tolerance
+0.0001 in. /+0.0004 in.
Shipping Weight
.05 lb.
General
Bushing Code
P
Heat Treatment
Through Hardened
Bushing Head Type
Headless
Material - Machining
High Speed Steel
Drill Bushing Wall Type
Thin Wall
Measurement System
Fractional Inch
Head Type
No
Size - Decimal
1-17/64 in - 1.2656
Product Description
These press-fit (P) drill bushings come in standard sizes expressed in fractional inches. Thin-wall press-fit drill bushings save space and can be placed closer together than standard-wall press-fit drill bushings.
Item Barcode
Drill Bushing,Type P,Drill
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 11F835 | Drill Bushing,Type |
 | UNSPSC CODES | 31171603 | |
 | VMRS (ATA) CODES | 053-006-009 | Drill Bushing,Type |
