PARKER

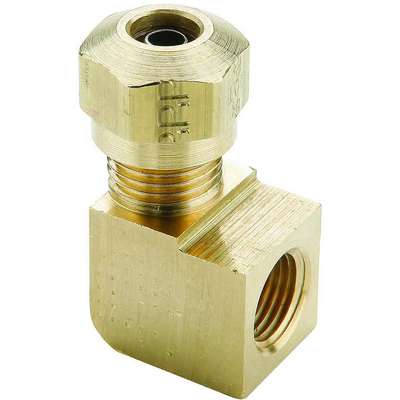

Female Elbow: Brass, For 1/4 in Tube OD, 1/8 in. Pipe Thread, Compression x FNPT, 1-1/32 in. Overall Lg
Hover over image to magnify
#922643-5 | Pkg Qty: 1
$12.03 pkg | $12.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Pipe Size
1/8 in.
Connection
Compression
Pipe Thread
1/8 in.
Connection Type
Female
Pressure
150 psi
DOT Approved
Yes
Shipping Weight
.08 lb.
DOT Compression Fittings Type
Elbows
Subcategory
Elbows
Fitting Style
Compression Fitting
Temperature Range
-40 deg. F to 200 deg. F
Material
Brass
Temperature Range (Deg. F)
-40 to 200 deg. F
Meets Standards
SAE J246, SAE J1131, DOTFMVSS 571.106
Tube Outside Diameter
1/4 in.
Mfr. Part Number
270NTA-4-2
Tube Size
1/4 in.
Overall Length
1-1/32 in.
Working Pressure
Up to 150 psi
Package Quantity
1
General
Application
Air
Fitting Side B Connection Type
FNPT
Compatible Fitting Brands
NTA(R)
Fitting Side B Pipe Size
1/8 in
Compatible Tube Material
Nylon
For Use With
SAE J844 Tubing
End Connection Type
Compression, Threaded
Includes Pre-Applied Thread Sealant
Yes
Fitting Body Material
Brass
Series
NTA
Fitting Shape
Elbow
Specific Fitting Shape
90 Degrees Elbow Adapter
Fitting Side A Connection Type
Compression
System of Measurement
Imperial
Fitting Side A Tube Outer Diameter
1/4 in
Thread Sealant Type
Vibra-Seal 516
Product Description
Female Elbow, Airbrake, Length 1.02 In., Pipe Size 1/8 In., Tube Size 1/4 in, Thread Size 7/16-24 In., Pressure (PSI) 150, Outside Dia. 1/4 In., Connection Compression, Temp. Range -40 Degrees to 200 Degrees F, Material Brass, For Use With SAE J844 Tubing, Standards SAE J246, SAE J1131, DOTFMVSS 571.106
Item Barcode
Female Elbow,Brass,1/4 In Tube,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48LY22 | Female Elbow, Brass,1/4 in |
 | UNSPSC CODES | 26112101 | |
 | VMRS (ATA) CODES | 053-006-009 | Female Elbow, Brass,1/4 in |
