VELVAC

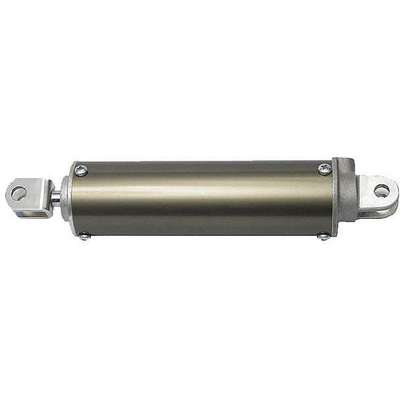

2-1/2" Air Cylinder Bore Dia. with 6-3/4" Stroke Aluminum , Clevis Mounted Air Cylinder

Hover over image to magnify
Air Cylinder,Air,2-1/2 In.
Air Cylinder,Air,2-1/2 In.

#922613-3 | Pkg Qty: 1

$75.33 pkg | $75.33 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Finish
Plated
Air Cylinder Mount
Clevis
Item
Air Cylinder
Body Material
Aluminum
Maximum Load
386 lb.
Brand
VELVAC
Maximum Pressure
100 psi
Cylinder Action
Single Acting
Mfr. Part Number
100101
Cylinder Ports
1/4-18 NPTF
Mount
Clevis
Dimension Cb
1.12
Package Quantity
1
Dimension Cd
0.531
Shipping Weight
3.05 lb.
End Cap Material
Aluminum
Tube Material
Gold Anodized tube
General
Air Cylinder Bore Dia.
2 1/2 in
Piston Rod Material
Metal
Air Cylinder Product Group
Air Cylinder
Pivot Hole Dia.
0.531 in
Bore Dia.
2 1/2 in
Rod Dia.
0.625 in
End Caps
Aluminum
Single Acting/Double Acting
Single Acting
Features
Gold Anodized tube
Tie Rod Material
Metal
Magnetic Piston
Yes
Tie Rods
Metal
Piston Rod
Metal

Product Description

Air Cylinder, Air Cylinder, Single Acting, Air Cylinder Bore Dia. 2 1/2 in, 6 3/4 in Stroke, Clevis Air Cylinder Mount, Aluminum Body Material, 1/4 in FTP Port Size, 12.64 in Retracted Overall Length, 386 lb Max. Load, 100 psi Max. Pressure, Plated Finish, Aluminum End Cap Material, Metal Piston Rod Material, Magnetic Piston Yes, Tie Rod Material Metal, Tube Material Gold Anodized tube, 0.625 in Rod Dia., 0.531 in Pivot Hole Dia.
