APPLETON ELECTRIC

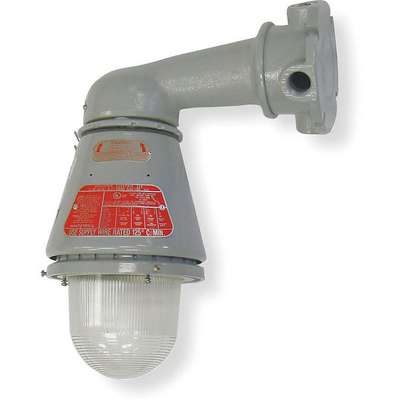

Appleton Electric Hazardous Location Lighting Fixtures, Dimmable No, 120V AC, For Max. Bulb Wattage 300 W

Hover over image to magnify
Fixture,Wall Mount
Fixture,Wall Mount

#922562-8 | Pkg Qty: 1

$704.45 pkg | $704.45 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPLETON ELECTRIC
Mfr. Part Number
ALB1575
Finish
Epoxy Powder Coated
Mounting
Wall
Height
13-3/4 in.
Number of Lamps
1
Item
Hazardous Location Lighting Fixtures
Pack Quantity
1
Lamp Included
No
Shipping Weight
19.8 lb.
Lamp Type
Incandescent
Voltage
120 VAC
Lamp Watts
300 W
Width
12-3/8 in.
Length
12-3/8 in.
General
BAA Compliant
Yes
Lamp Watts - Fixtures
300
CA Title 24 Compliant
No
Max. Fixture Wattage
300 W
Emergency Battery Backup
No
Mounting Location
Wall
Fixture Voltage
120V AC
Nominal Size - Fixtures
1 ft x 1 ft
For Bulb Shape
A23/PS25
Overall Width
12 3/8 in
For Bulb Type
Incandescent
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III
For Max. Bulb Wattage
300 W
Series
A-51 Incandescent
For Number of Bulbs
1
Standards
Class 1, Div 1, 2, Groups C, D, Class 2, Div 1, 2, Groups E, F, G, Class 3, ULE10794, UL1598
Hazard Classification
Class I/Division 1, Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III
Temperature Code
T3C
Lamp Quantity
1

Product Description

These Class I, II, and III fixtures illuminate Division 2 hazardous locations where flammable gases or vapors, combustible dusts, and/or ignitable fibers or flyings are normally confined or not present in ignitable concentrations. Their group ratings designate use in locations with specific types of gas, vapor, or dust. They prevent arcs or sparks within the fixture from igniting gases, vapors, dusts, fibers, or flyings on or near the fixture.Flammable gases and vapors are Class I hazards commonly found in petroleum refineries, fuel dispensaries, sewage treatment plants, and processes using chemicals, paints, coatings, or sealants. Combustible dusts are Class II hazards commonly found in pharmaceutical factories, coal-handling plants, grain elevators, and plants processing flour, feed, or powder. Ignitable fibers and flyings are Class III hazards commonly found in textile mills, lumber mills, and other plants with airborne fibers or sawdust.
