ECONOLINE

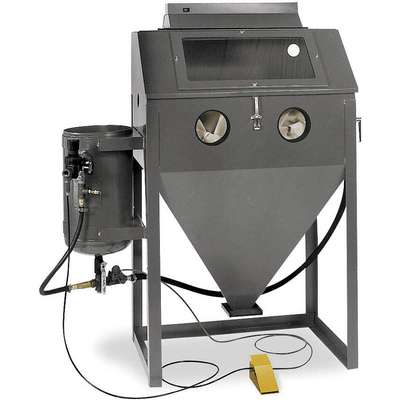

Econoline Pressure-Feed Abrasive Blast Cabinet, Work Dimensions: 23" x 36" x 24", Overall: 65" x 60" x 25

Hover over image to magnify
Abrasive Blast Cabinet
Abrasive Blast Cabinet

#922544-2 | Pkg Qty: 1

$2,668.75 pkg | $2,668.75 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ECONOLINE
Package Quantity
1
Item
Abrasive Blast Cabinet
Shipping Weight
395 lb.
Mfr. Part Number
101694DG-A
General
Application
Dry-blasting Abrasives
Side Opening (In.)
17 x 11
Blast Cabinet Grouping
Abrasive Blast Cabinet
Top Opening
36 in x 13 in
Cabinet Design
Floor
Top Opening (In.)
36 x 13
Feed Type
Pressure
Window
12 in x 24 in
Includes
An ASME Code Pressure Tank Tungsten Carbide 12 CFM Nozzle
Work Area Depth
24 in
Min. CFM @ 80 PSI
12 cfm
Work Area Depth (In.)
24
Nominal Size (In.)
36 x 24
Work Area Dimensions
23 in x 36 in x 24 in
Overall Depth (In.)
25
Work Area Height
23 in
Overall Height (In.)
65
Work Area Height (In.)
23
Overall Width (In.)
60
Work Area Width
36 in
Side Opening
17 in x 11 in
Work Area Width (In.)
36

Product Description

The ECONOLINE abrasive blast cabinet is constructed with a 14-ga. steel body and 11-ga. steel legs, with spring-loaded trap door attached to the bottom of the hopper. Maintains a minimum 45° angle to insure that abrasive will flow to the bottom of the hopper and into the delivery system. Uses less compressed air and provides better control at all pressures. Requires 5-HP compressor and 12 cfm compressed air at 80 psi. Handles glass, aluminum oxide, corn cob, and silicon carbine abrasive media.
