DAYTON

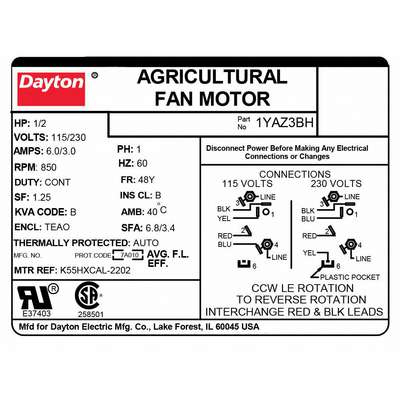

Dayton 1/2 HP Agricultural Fan Motor,Permanent Split Capacitor,850 Nameplate RPM,115/230 Voltage
Hover over image to magnify
#922544 | Pkg Qty: 1
$370.48 pkg | $370.48 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Recognized (E47479), CSA Certified (701887)
Mounting Position
All Angle
Bearings
Ball
NEMA/IEC Frame
48Y
Brand
DAYTON
Nameplate RPM
850
Duty
Continuous
Number of Speeds
1
Duty Cycle
Continuous
Overall Length
10-31/32 in.
Enclosure
Totally Enclosed Air-Over
Package Quantity
1
Finish
Enamel
Phase
Single
Frame
48YZ
Replacement For
4M250, 6GC98
Full Load Amps
6.0/3.0
Rotation
CW/CCW
Hz
60
Service Factor
1-1/4
Insulation Class
B
Shaft Length
3-3/8 in.
Item
Agricultural Fan Motor
Shaft Orientation
Shaft Down
Length Less Shaft
8-7/32 in.
Shaft Type
Keyed
Mfr. Part Number
1YAZ3
Shipping Weight
22.51 lb.
Motor Design
Permanent Split Capacitor
Thermal Protection
Auto
Motor Type
PSC
Voltage
115/230 VAC
Mounting
Stud
General
Application
Farm Duty
Motor Service Factor
1.25
Capacitor Required
Included
Motor Shaft Design
Keyed
HP
1/2
Motor Shaft Rotation
CW/CCW
Includes
Shaft Slinger, Gasketed Capacitor Cover & Wiring Compartment Cover, Extended Thru Bolts
Motor Sub Application
Agricultural Fan
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
62.8 %
Motor Bearings
Ball
RPM Range
0-1,000
Motor Enclosure Design
Totally Enclosed Air-Over
Shaft Dia.
5/8 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
All Angle
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Stud
Product Description
Poultry/livestock direct drive farm-duty AC motors require no V-belts or sheaves that can wear out and require maintenance and replacement. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Expertly Selected Product Pairings
Documents
Item Barcode
Poultry Fan Mtr,Psc,Teao,1/2
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1YAZ3 | Poultry Fan Mtr,PSC,TEAO, |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 | Poultry Fan Mtr,PSC,TEAO, |
