EATON WEATHERHEAD

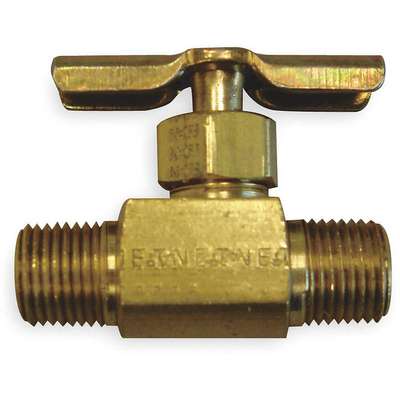

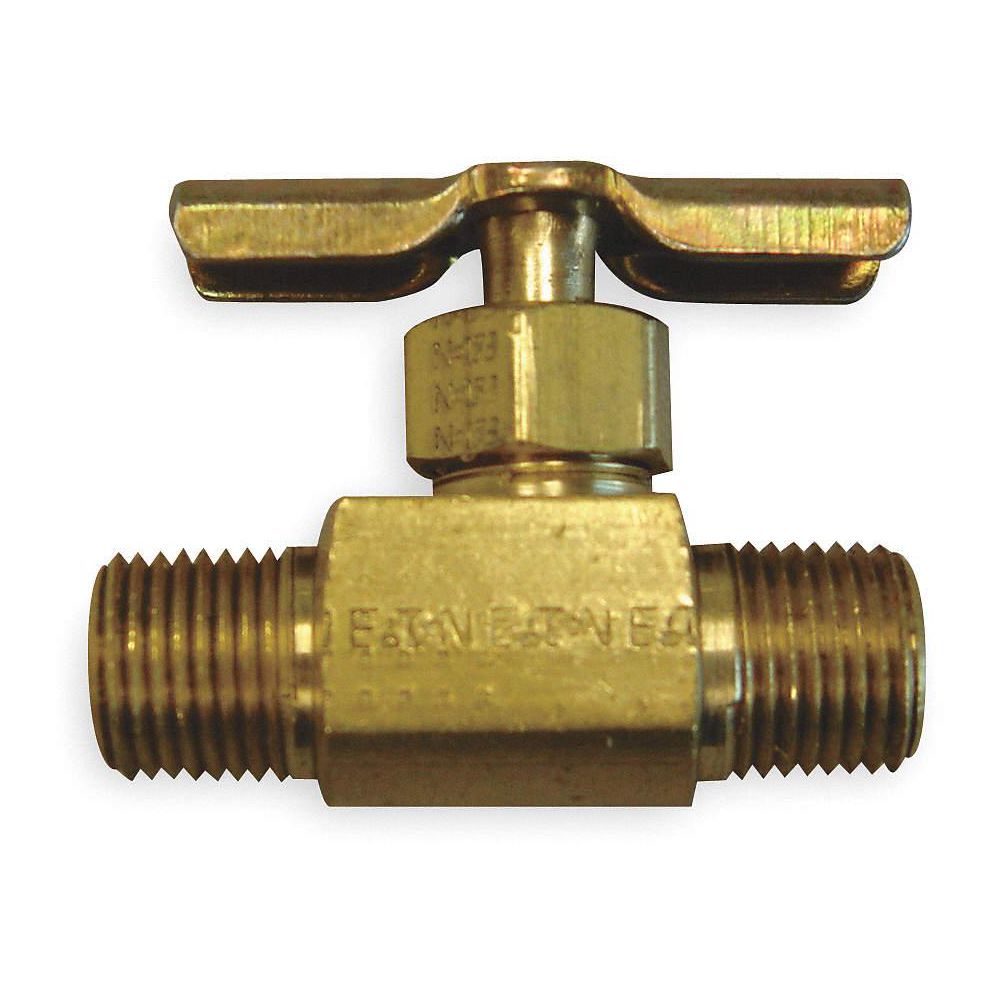

Needle Valve: Straight Fitting, Brass, 1/4 in Pipe Size, MNPT

Hover over image to magnify
Needle Valve,Straight,Brass,1/
Needle Valve,Straight,Brass,1/

#922517 | Pkg Qty: 1

$35.56 pkg | $35.56 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Brass
Length
1-5/8 in.
Brand
EATON WEATHERHEAD
Maximum Pressure
150 psi
Connection Type
MNPT
Mfr. Part Number
6815
Fitting Style
Straight
Outlet Port Size
1/4 in.
Handle Material
Steel
Package Quantity
1
Inlet Port Size
1/4 in.
Shipping Weight
.15 lb.
Item
Needle Valve
Temperature Range (Deg. F)
Up to 250 deg. F
General
Max. Height
1 15/64 in
Temp. Rating
0 Degrees to 250 Degrees F
Stem Type
Brass

Product Description

For use in hydraulic and pneumatic systems. Designed for automotive and industrial applications. Standard style, brass construction with steel handles. Valve features metal-to-metal seats with fine thread screw down and comes complete with nuts and sleeves.

Item Barcode
9225170
Needle Valve,Straight,Brass,1/
 NameItemDescription
Grainger DropshipGrainger Dropship1VPW3Needle Valve, Straight,
UNSPSC CODESUNSPSC CODES40141602
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004Needle Valve, Straight,
