3M

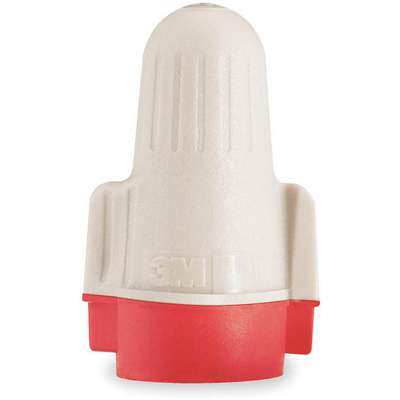

3M Twist On Wire Connector, Application Wide Range, Wire Connector Style Wing, Color Tan/Red
#922453-2Pkg Qty: 100
$38.10 pkg | $0.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Wide Range
Brand
3M
Height
0.76 in.
Item
Twist On Wire Connector
Maximum Voltage
600 VAC
Maximum Wire Combination
(5) 12 AWG
Maximum Wire Size
12 AWG
Mfr. Part Number
T/R+BOX
Minimum Wire Combination
(2) 18 AWG
Minimum Wire Size
18 AWG
Package Quantity
100
Series
Performance Plus
Shipping Weight
.7 lb.
Width
0.76 in.
Wire Connector Style
Wing
Application
Wide Range
Minimum Wire Combination
(2) 18 AWG
Brand
3M
Minimum Wire Size
18 AWG
Height
0.76 in.
Package Quantity
100
Item
Twist On Wire Connector
Series
Performance Plus
Maximum Voltage
600 VAC
Shipping Weight
.7 lb.
Maximum Wire Combination
(5) 12 AWG
Width
0.76 in.
Maximum Wire Size
12 AWG
Wire Connector Style
Wing
Mfr. Part Number
T/R+BOX
General
Description/Special Features
Replaces Yellow Red And Tan Connectors
For Conductor Material
Copper
For Wire Size
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 8 AWG
Length
1.17 in.
Maximum Conductors
6
Maximum Single Wire Size
12 AWG
Minimum Single Wire Size
18 AWG
RoHS Compliant
Yes
Special Features
Replaces Yellow Red And Tan Connectors
Standards
CSA Certified, CE Marking
Strip Length
1/2 in
Twist-On Wire Size Ranges
22 AWG – 8 AWG
Type
Wire
UL 94 Flammability Rating
V-2
Description/Special Features
Replaces Yellow Red And Tan Connectors
RoHS Compliant
Yes
For Conductor Material
Copper
Special Features
Replaces Yellow Red And Tan Connectors
For Wire Size
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 8 AWG
Standards
CSA Certified, CE Marking
Length
1.17 in.
Strip Length
1/2 in
Maximum Conductors
6
Twist-On Wire Size Ranges
22 AWG – 8 AWG
Maximum Single Wire Size
12 AWG
Type
Wire
Minimum Single Wire Size
18 AWG
UL 94 Flammability Rating
V-2
Product Description
The 3M™ Performance Plus Wire Connector T/R+ replaces the traditional tan and red connectors, allowing you to do more with less in just about any residential wiring job. The quick-biting spring mechanism provides a secure hold that you can count on to connect and insulate most all your copper wire applications. A generous amount of expansion room accommodates a wide range of solid or stranded wire.
