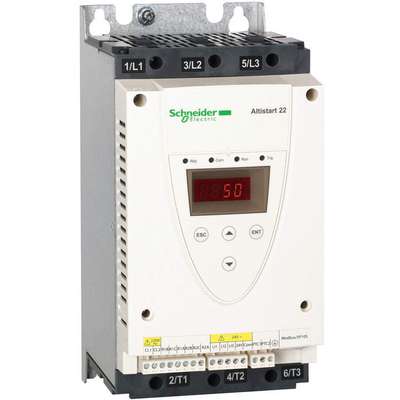

Schneider Electric 3 Phase, Soft Start, 32A Output Current, 208 to 600 VAC Input Voltage, 208 to 600 VAC Output Voltage
Hover over image to magnify
#922422-8 | Pkg Qty: 1
$1,003.12 pkg | $1,003.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Overall Depth
6.65 in.
Communication Port
Modbus
Overall Height
10.43 in.
Depth
6.6 in.
Overall Width
5.12 in.
Enclosure Rating
IP20, NEMA 1
Package Quantity
1
Height
9.8 in.
Phase
Three
IP Rating
20
Protects
Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter
Input Voltage
208 to 600 VAC
Shipping Weight
12.58 lb.
Item
Soft Start
Start Type
Torque Control Start
Mfr. Part Number
ATS22D32S6U
Type
Integrated Bypass, Keypad Control
Output Current
32 A
Width
5.1 in.
Output Voltage
208 to 600 VAC
General
Application
Fans, Pumps
HP @ 3 Phase - 575V
25 hp
Control Voltage
110V AC
Input Voltage Range
208/600VAC
Function Type
Start or Stop
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
HP @ 3 Phase - 208V
7 1/2 hp
Output Power
10 hp @ 3 Phase, 230V AC, 20 hp @ 3 Phase, 460V AC, 25 hp @ 3 Phase, 575V AC, 7.5 hp @ 3 Phase, 208V AC
HP @ 3 Phase - 230V
10
Ramp Time
0 to 20 Sec., 0 to 40 Sec.
HP @ 3 Phase - 240V
10 hp
Standards
C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST
HP @ 3 Phase - 460V
20
Stop Time
0 to 10 sec, 1 to 60 sec
HP @ 3 Phase - 480V
20
With Bypass / No Bypass
With Bypass
Product Description
Altistart® Soft Starters
- Adjust current inrush to protect motors from mechanical shock and stress during motor start-ups and help reduce utility costs. Set both initial voltage and ramp-up timing. Ambient temp.: -10° to 40°C. Suitable for fans, pumps, conveyors, compressors, saws and sanders, and mixers and agitators.
- Altistart 22 and 48
- Rated for 6 standard starts per hour. An RJ45 Modbus port enables use with a Modbus network connection, remote keypad, or SoMove PC software. 22 Series units feature 1 PTC probe analog input, 3 logic inputs, and 2 relay outputs. 48 Series units feature 1 PTC probe analog input, 4 logic inputs, 1 analog output, 2 logic outputs , and 3 relay outputs. Nominal motor current can be adjusted from 0.4- to 1.3-times the starter nominal current.
