SAWSTOP

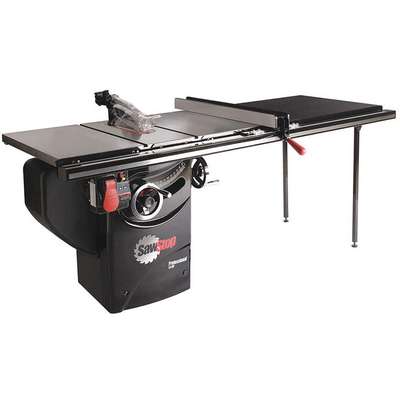

SawstopCS31230?TGP252 Table Saw, Cabinet Stand Type, 10" Blade Diameter, 5/8" Arbor Size, Max. Blade Speed 4000 RPM

Hover over image to magnify
Cabinet Table Saw,13A,85-1/4
PI_Asset_980140
PI_Asset_980141
PI_Asset_980142
PI_Asset_980143
Cabinet Table Saw,13A,85-1/4
PI_Asset_980140
PI_Asset_980141
PI_Asset_980142
PI_Asset_980143

#922396-7 | Pkg Qty: 1

$4,462.50 pkg | $4,462.50 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Amps AC
13
Includes
Bare Tool
Arbor Size
5/8 in.
Item
Cabinet Table Saw
Blade Diameter
10 in.
Overall Depth
33 in.
Brand
SAWSTOP
Pack Quantity
1
Corded/Cordless
Corded
Phase
Single Phase
Hz
60
Shipping Weight
528 lb.
General
Arbor Shape
Round
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Automatic Blade Safety Retraction
Yes
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Bevel Angle Range
0 Degrees to 45 Degrees Left
Table Front of Blade
10 1/4 in
Blade Dia.
10 in
Table Length
27 in
Current
13A
Table Saw Type
Cabinet
Max. Blade Speed
4,000 RPM
Table Surface w/Extension
84-1/8 in x 27 in
Max. Cut Width Left of Blade
12 in
Table Width
85 1/4 in
Max. Cut Width Right of Blade
52 in
Table Width with Extension
85 1/4 in

Product Description

These cabinet table saws have a safety feature that automatically retracts the saw blade when any part of the worker's body, such as hands or arms, touches the blade. Floorstanding cabinet table saws have an extended surface on both sides of the blade to support large workpieces and sheet goods, providing more precise cuts and control than circular saws and portable table saws. Cabinet table saws are plugged into a wired power source and are not intended to be moved.

Compliance & Restrictions

State ship exclusion
Shipping Exclusions: AK HI
Item Barcode
9223967
Cabinet Table Saw,13A,85-1/4
  Name Item Description
Grainger Dropship Grainger Dropship 46AC41 Cabinet Table Saw,
UNSPSC CODES UNSPSC CODES 27112709
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Cabinet Table Saw,
