APC BY SCHNEIDER ELECTRIC

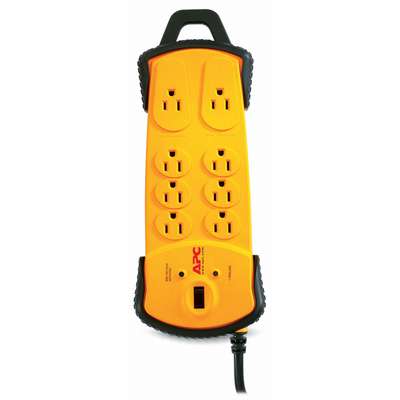

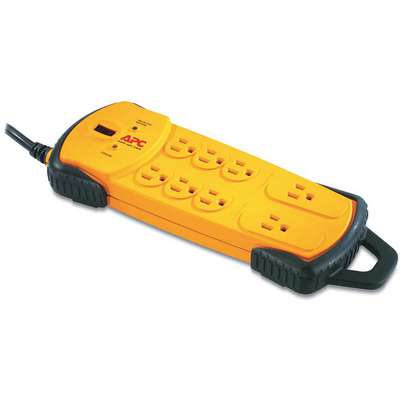

APC By Schneider Electric Surge Protector Outlet Strip; 8 Outlets; 15 Amps; 15 ft. Cord Length; 120 VAC; Yellow

Hover over image to magnify
Surge Protector Strip,8 Outlet,
PI_Asset_967880
Surge Protector Strip,8 Outlet,
PI_Asset_967880

#922396-3 | Pkg Qty: 1

|
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
APC BY SCHNEIDER ELECTRIC
Mounting Style
Side Nipple
Color Family
Yellow
NEMA Plug Configuration
5-15P
Communication Port
None
NEMA Receptacle Configuration
5-15R
Cord Length
15 ft.
Number of Conductors
3
Height
1-3/4 in.
Number of Total Outlets
8
Housing Material
Plastic
Number of Transformer Outlets
2
Hz
50/60 Hz
Outlet Surge Protection
Yes
Includes
User Manual
Package Quantity
1
Item
Surge Protector Outlet Strip
Power Indicator
Yes
Length
13-1/2 in.
Power Strip Application
Home and Office
Maximum Amps
15 A
Rated Joules
800
Maximum Surge Current
Not Rated
Shipping Weight
2.55 lb.
Medical Facility Use
Outside Patient Care Areas (UL 1449)
Voltage
120 VAC
Medical Grade
No
Width
4-3/4 in.
Mfr. Part Number
PDIY8
Wire Size
14 AWG
General
Application
Home and Office
Number of Total Outlets - Ext. Cords and Outlet Strips
8
Cord Length - Ext. Cords and Outlet Strips
15 ft.
Receptacle Configuration
NEMA 5-15R
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Standards
UL/cUL/CSA
Includes
User Manual
Total Number of Outlets
8
Max. Amps - Ext. Cords and Outlet Strips
15.0
UL 1449 Clamping Volts
500
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P
Wire
5
Noise Reduction Rating NRR
2

Product Description

Home and office surge-protected power strips provide multiple electrical outlets to power devices from one location while protecting the devices from damage due to voltage increases. Also called surge suppressors, these lightweight strips plug into a wall receptacle and are suitable for use with printers, computers, audio/video equipment, and other electronic devices in residential and commercial environments. They consist of a flexible cord with a plug on one end attached to a block of sockets that devices plug into.

Surge-protected power strips are portable blocks of electrical sockets that supply power to multiple devices from one outlet and protect the connected devices from damage due to unexpected voltage increases. Also called a surge suppressor, the surge protector absorbs the excess voltage and diverts it to the ground wire, preventing it from reaching the connected equipment. A surge protector's joule rating determines how much energy it can absorb before it fails. A higher number indicates greater protection. These outlet strips are typically used to provide additional outlets in areas that don't have enough wall receptacles for the number of devices. They are portable and can be unplugged and moved to another location as needed. They are suitable for homes, offices, medical facilities, and industrial environments where protection from power spikes is a priority.
