ROMEX

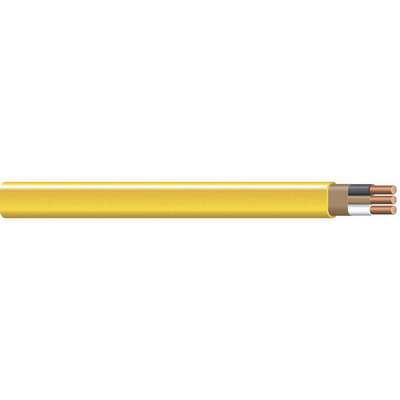

100 ft. Solid Nonmetallic Building Cable; Conductors: 2 with Ground, 12 AWG Wire Size, Yellow

Hover over image to magnify
Nonmetallic Cable,12/2  Awg,
PI_Asset_1353886
Nonmetallic Cable,12/2  Awg,
PI_Asset_1353886

#922394-3 | Pkg Qty: 1

$122.68 pkg | $122.68 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ROMEX
Mfr. Part Number
28828228
Cable Type
NM-B
Nominal Outside Diameter
0.410 in. x 0.179 in.
Cable/Wire Type
NM-B
Number of Conductors
2 with Ground
Color Family
Yellow
Package Quantity
1
Conductor
THHN
Packaging
Coil
Description/Special Features
For indoor Use
Shipping Weight
8.35 lb.
Gauge/Conductor
12/2 with Ground
Spool Length
100 ft.
Indoor/Outdoor
Indoor
Stranded / Solid
Solid
Insulation Material
PVC
Temperature Rating
194F
Item
Nonmetallic Building Cable
Type
Nonmetallic
Jacket Color
Yellow
Voltage
600 V
Jacket Material
PVC
Wire Color
Bare, Black, White
Jacket Type
PVC
Wire Size
12 AWG
Length
100 ft.
Wire and Cable Item
Nonmetallic Building Cable
Maximum Amps
20
Wire/Cable Jacket Material
PVC
Maximum Voltage
600 V
Wire/Cable Size
12 AWG
General
Application
For Indoor Use
Standards
UL
Cable Type - Wire and Cable
NM-B
Trade Designation
NM-B
Conductor Design
Solid
Wire Size - Wire and Cable
12 AWG
Jacket Material - Wire and Cable
PVC

Product Description

Nonmetallic sheathed (NM-B) building cable is a flexible electrical cable consisting of three or more wire conductors (including one for grounding) bundled inside a thermoplastic jacket, or sheath, that is nonconductive and heat-resistant. It's lighter than armored building cable, making it easier to handle, and its pliable sheathing is easier to unspool and straighten out. It is commonly used in residential and commercial applications to provide power for outlets, lighting, and appliances. Type NM-B cable is for enclosed, interior wiring in dry locations only (typically within a wall, ceiling, or under a floor) and should not be used outdoors or anywhere it might get wet.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.

Expertly Selected Product Pairings

Staple,Cable,1/2",PK50
$4.56 pkg | $0.09 ea
Item: 916815-1 | Pkg Qty: 50

Item Barcode
9223943
Nonmetallic Cable,12/2 Awg,
 NameItemDescription
Grainger DropshipGrainger Dropship2VGA7Nonmetallic Cable,12/2
UNSPSC CODESUNSPSC CODES26121629
VMRS (ATA) CODESVMRS (ATA) CODES001-002-149Cable - Heater Control

For more product information by email, click here
