ECONOLINE

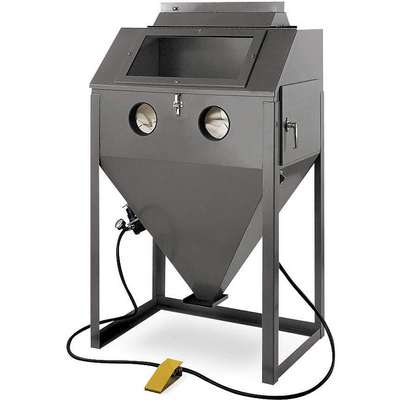

Econoline Siphon-Feed Abrasive Blast Cabinet, Work Dimensions: 23" x 36" x 24", Overall: 63" x 39" x 25
Hover over image to magnify
#922321-7 | Pkg Qty: 1
$1,683.70 pkg | $1,683.70 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ECONOLINE
Package Quantity
1
Item
Abrasive Blast Cabinet
Shipping Weight
224 lb.
Mfr. Part Number
101694G-A
General
Application
To Prepare Surfaces for Plating, Scale Removal as well as for Deburring and Peening
Side Opening (In.)
17 x 11
Blast Cabinet Grouping
Abrasive Blast Cabinet
Top Opening
36 in x 13 in
Cabinet Design
Floor
Top Opening (In.)
36 x 13
Feed Type
Siphon
Window
12 in x 24 in
Includes
Carbide Air Jet, Carbide Nozzle, Foot Pedal Actuator and Door Safety Switch, Regulator and Gauge
Work Area Depth
24 in
Min. CFM @ 80 PSI
12 cfm
Work Area Depth (In.)
24
Nominal Size (In.)
36 x 24
Work Area Dimensions
23 in x 36 in x 24 in
Overall Depth (In.)
25
Work Area Height
23 in
Overall Height (In.)
63
Work Area Height (In.)
23
Overall Width (In.)
39
Work Area Width
36 in
Side Opening
17 in x 11 in
Work Area Width (In.)
36
Product Description
Constructed with 14-ga. steel bodies and 11-ga. steel legs, with spring-loaded trap door attached to the bottom of the hopper. Maintain a minimum 45° angle to insure that abrasive will flow to the bottom of the hopper and into the delivery system.
Item Barcode
Abrasive Blast Cabinet
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3Z850 | Abrasive Blast Cabinet |
 | UNSPSC CODES | 27131507 | |
 | VMRS (ATA) CODES | 053-006-009 | Abrasive Blast Cabinet |
