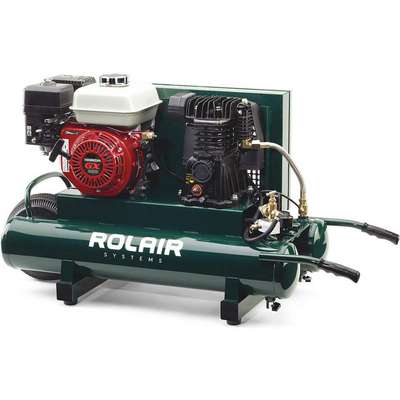

Portable Gas Air Compressor: 1 Stage, 6.5 hp Engine, Honda, 13.5 cfm @ 90 psi, 9 gal Air Tank
Hover over image to magnify
#922319 | Pkg Qty: 1
$1,473.05 pkg
| $1,473.05 ea
This item requires special shipping, additional charges may apply.
Technical Specifications
Key Specifications
(F)NPT Outlet
3/8 in.
Number of Stages
1
Air Consumption
scfm
Overall Height
28 in.
Average Pump Life
8000 hr.
Overall Length
46 in.
Brand
ROLAIR
Overall Width
19 in.
Engine Brand
Honda GX200
Pack Quantity
1
Free Air CFM @ 90 PSI
13-1/2
Product Weight
179 lb.
Free Air CFM @ Max Pressure
12.8
Pump RPM
1100
Horsepower
6-1/2
Shipping Weight
186 lb.
Includes
3/8 in Regulator, Full Metal Belt Guard, Fully Pneumatic Wheels, Gauge, Safety Valve, Tank Drains
Style
Wheelbarrow
Item
Portable Gas Air Compressor
Tank Size
9.0 gal.
Lubrication Type
Splash Lubricated
Tank Style
Wheelbarrow
Maximum Pressure
135 psi
Tank Type
Twin
General
Air Tank Size
9 gal
Fuel Type - Engine
Gasoline
Air Tank Style
Wheelbarrow
HP
6.5
Avg Pump Life
8,000 hr
Lubrication Type - Air compressor
Splash Lubricated
Avg. Pump Life
8,000 hr
Max. Pressure - Air Compressor
135 psi
Engine HP - Air Compressor
6.5 hp
Number of Stages - Air Compressor
1
Engine Oil Capacity
20 oz
Outlet Gender
Female
Engine Output Power
6.5 hp
Pump Oil Capacity
30 oz
Free Air CFM @ 90 PSI - Air Compressor
13.5
Sound Level Range
Standard (70 dBA or more)
Free Air CFM @ Max. Pressure
12.8
Tank Size - Air Compressor
9.0 gal
Free Air CFM @ Max. Pressure - Air Compressor
12.8
Tank Style - Air Compressor
Wheelbarrow
Free Air Flow Rate
13.5 cfm
dBA @ 3 Feet
90
Free Air Flow Rate @ Maximum Pressure
12.8 cfm
Product Description
Portable air compressors are powered by a gas engine. Air compressor units are intended to provide compressed air to power pneumatic tools and operate spray guns. The pumps supplied are oil lubricated. Applications requiring air free of oil or water should have the appropriate filter installed.
