Wide Angle Float Switch

Wide Angle Float Switch
Float Switch,Normally Open,120/
PI_Asset_1354346

#922313-5 | Pkg Qty: 1

$111.83 pkg | $111.83 ea
Item Number 922313-5
Scanner Description Float Switch,Normally Open,120/
Inventory Status Drop Ship Item
Weight 2.04 lb
Brand SJE-RHOMBUS

Technical Specifications

Agency Compliance
UL, CSA
Maximum Liquid Temperature
140°F
Amps
15A
Maximum Pressure
20 psi
Body Material
PVC
Maximum Temperature (Deg. C)
60°
Brand
SJE-RHOMBUS
Maximum Temperature (Deg. F)
140°
Compliance
UL, CSA
Maximum Voltage
120/230 VAC
Connection
Wire Leads
Maximum Water Level Adjustment
36
Control Range
Adjustable
Mfr. Part Number
15PMPDWOP
Electrical Connection
Wire Leads
Minimum Water Level Adjustment
7
Float Diameter
3-1/16
Mounting Bracket Material
Stainless Steel, ABS
Float Length
3-9/16
Mounts
Hose Clamp
Float Material
PVC
Operation
NO
Float Switch Contact Form
Normally Open
Pack Quantity
1
Float Switch Cord Length
15 ft.
Pumping Range Minimum/Maximum
7 to 36
Float Switch Float Material
PVC
Series
Pump Master Plus
Float Switch Off Point
45° Below Horizontal
Tether Length Minimum-Maximum
3-1/2 in. to 24 in.
For Use With
Pumps Up to 15A
Turns Off At
45° Below
Height
3-9/16 in.
Turns On At
45° Above
Includes
Mounting Clamp Assembly
Type
Wide Angle
Item
Float Switch
Voltage
120/230 VAC
Length
3-9/16 in.
Wire Gauge
14
Maximum Amps Running
15
Wire Lead
SJOW

Product Description

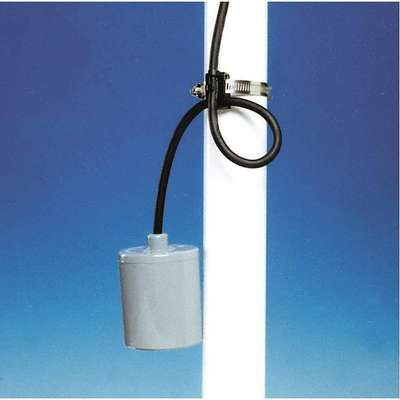

These tether float switches are activated by a float that is attached to the pump by a flexible tether that can be adjusted so the pump starts and stops automatically at preset levels. They require more space to operate compared to vertical float switches since the flexible tether moves in an arc as the water level rises and falls in the sump basin.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9223135
