HAMILTON

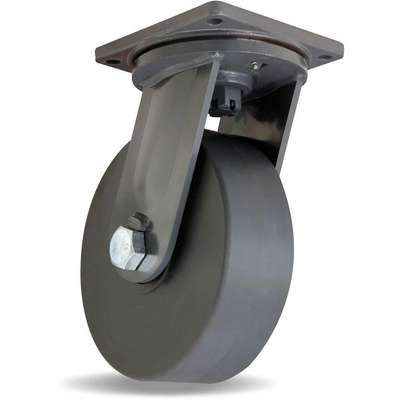

Hamilton Extra Super Duty, Swivel, Standard Plate Caster; 10,000 lb. Load Rating, 12" Wheel Dia.

Hover over image to magnify
Plte Caster,Swvl,Nylon,12 In.,
PI_Asset_928477
Plte Caster,Swvl,Nylon,12 In.,
PI_Asset_928477

#922305-8 | Pkg Qty: 1

$1,317.74 pkg | $1,317.74 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HAMILTON
Load Rating
10,000 lb.
Caster Brake Included
No
Mfr. Part Number
S-MD-124NYB
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
1/2 in.
Caster Core Material
Nylon
Mounting Height
15-1/2 in.
Caster Load Rating Range
Extra Super Duty
Non-Marking
Yes
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Caster Plate Size
8-1/2 in. x 8-1/2 in.
Number of Wheels
1
Caster Raceway
Roller
Outside Bolt Hole Spacing
7 in. x 7 in.
Caster Swivel Lock Type
No Lock Included
Package Quantity
1
Caster Wheel Bearings
Precision Ball
Plate Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Replacement Wheel
23EF92
Caster Wheel/Tread Material
Nylon
Shipping Weight
102 lb.
Core Color
Black
Swivel Construction
Kingpin
Durometer
85 Shore D
Wheel Color
Black
Frame Finish
Enamel
Wheel Diameter
12 in.
Frame Material
Steel
Wheel Width
4 in.
Inside Bolt Hole Spacing
7 in. x 7 in.
Wheel/Tread Hardness Rating
Hard
Item
Standard Plate Caster
General
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Size
8 1/2 in x 8 1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
8 1/2 in x 8 1/2 in (D)
Caster Max. Temp.
200°F
Standards
ICWM
Caster Min. Temp.
-30°F
Swivel Lock Type
No Lock Included
Caster Plate Thickness
5/8"
Swivel Raceway Type
Roller
Caster Product Group
Swivel Caster
Thread Guards
No
Caster Temp. Range Available
Yes
Tread Shape
Standard
Extended Lead
No
Wheel Bearing Type
Precision Ball
Features
Floor Protective
Wheel Core Material
Nylon
Includes
Spanner Bushing
Wheel Dia.
12 in
Load Rating Range
6000 lb and Greater
Wheel/Tread Hardness
85 Shore D
Mounting Bolt Dia.
1/2 in
Wheel/Tread Material
Nylon
Mounting Plate Bolt Hole Pattern
D

Product Description

Super-duty standard plate casters have forged steel frames, tapered roller thrust bearings, and forged steel kingpins. They can bear heavier loads, tolerate more frequent use, and withstand more shock and impact from rolling over rough or uneven ground than light-duty, medium-duty, heavy-duty, and extra-heavy-duty standard plate casters. The casters are attached to the bottom of die carts and other heavy equipment used in shipbuilding sites, aerospace plants, automotive factories, steel mills, heavy equipment manufacturers, and other industrial operations. Swivel versions of these casters have roller load bearings or large-diameter double swivel ball bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
