Home All Products Electrical Motors Motor Supplies Capacitors SKU: 922301-6
TITAN HD

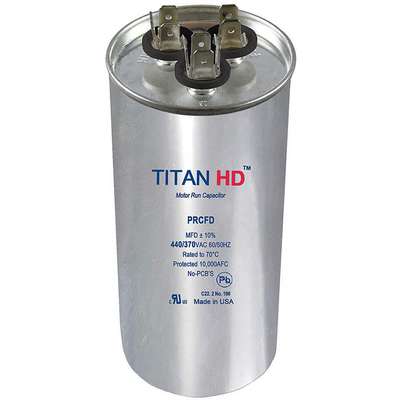

Titan Hd Round Motor Dual Run Capacitor,60/5 Microfarad Rating,440VAC Voltage

Hover over image to magnify
Motor Dual Run Cap,60/5 Mfd,
Motor Dual Run Cap,60/5 Mfd,

#922301-6 | Pkg Qty: 1

$31.92 pkg | $31.92 ea

Technical Specifications

Key Specifications
Brand
TITAN HD
Number of Pieces
1
Capacitor Shape
Round
Number of Terminals
3
Case Height
2-29/32 in.
Overall Depth
2-1/2 in.
Case Material
Aluminum
Overall Height
3-13/32 in.
Connection Type
Quick Connect
Overall Width
2-1/2 in.
Construction
Aluminum Case with Steel Cover
Pack Quantity
1
Cover Material
Steel
Shape
Round
Diameter
2-1/2 in.
Standards
E136401, RoHS Compliant, IEC 60252
For Use With
Electric Motors
Temperature Range
-40 C to 70 C
Hz
60/50
Terminals
1/4 in. Male
Item
Motor Dual Run Capacitor
Voltage
440/370 VAC
General
Capacitor Voltage
440/370V AC
Motor Capacitor Type
Motor Dual Run Capacitor
Capacitor Voltage Group
440V AC
Temp. Range
-40° to 70°C
EIA Tolerance Code
A
Terminal Designations
Standard
EIA UL Base
A
Terminal Gender
Male
Microfarad Rating
60/5
Terminal Tab Width
1/4 in
Min. Temperature
-40 °C

Product Description

Motor Dual Run Capacitor, 60/5 Microfarad Rating, 440V AC Capacitor Voltage, 60/50 Hz, Round Capacitor Shape, 2 1/2 in Diameter, 2 29/32 in Case Height, 3 13/32 in Overall Height, 2 1/2 in Overall Width, EIA UL Base A, Terminal Type 1/4 in Male Quick-Connect, -40 Degrees to 70 Degrees C Temp. Range, Case Material Aluminum, Cover Material Steel, Standards E136401, RoHS Compliant, IEC 60252

Item Barcode
9223016
Motor Dual Run Cap,60/5 Mfd,
  Name Item Description
Grainger Dropship Grainger Dropship 20UD88 Motor Dual Run Cap,60/5
UNSPSC CODES UNSPSC CODES 32121501
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Motor Dual Run Cap,60/5

For more product information by email, click here
