TE-CO

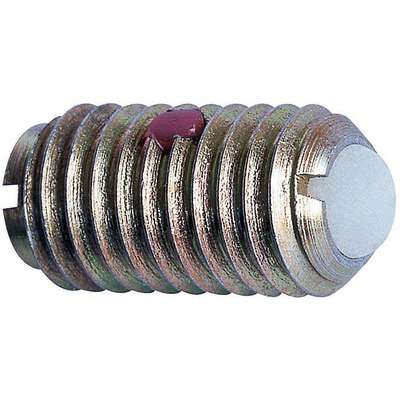

Spring Plunger, Thread Size 3/8"-16, Thread Length 5/8", Plunger Projection 0.0480", Steel

Hover over image to magnify
Plunger w/o Locking,Ball,3/8,5/
Plunger w/o Locking,Ball,3/8,5/

#922269 | Pkg Qty: 5

$26.00 pkg | $5.20 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Ball Material
Nylon
Material
Steel Body (12L14)
Body
Steel
Mfr. Part Number
53810X01
Body Finish
Zinc
Mounting Type
Threaded
Body Length
5/8 in.
Overall Length
5/8 in.
Body Material
Steel
Pack Quantity
5
Brand
TE-CO
Product Type
Spring Plunger
Finish
Zinc Chromate
Shipping Weight
0.06 lb.
Force
Light
Spring Material
Stainless Steel
Function
Controlled End Forces
Thread
Fully Threaded
Handle Type
Slotted Drive
Thread Length
5/8 in.
Item
Spring Plunger
Thread Size
3/8"-16
Locking
No
Type
Without Locking Element
General
Application
Controlled End Force
Plunger Finish
Zinc
Body Dia.
3/8 in
Plunger Material
Steel
Final Nose Force
5 lb
Plunger Projection
0.0480 in
Initial Nose Force
2.5 lb
Retractable
No
Nose Shape
Ball
Thread-Locking Element Included
No
Plunger Dia.
0.1870 in

Product Description

Ball Plungers

  • Sold in pack of 5
  • Smallest and lightest spring-loaded devices with controlled end forces. Offer a short travel range and high strength in side-load applications. Ball material for steel plungers is 404 stainless steel; for stainless steel plungers, ball is 440 stainless steel. Use zinc plated for light end forces, and black oxide for standard end forces.
