TELEMECANIQUE SENSORS

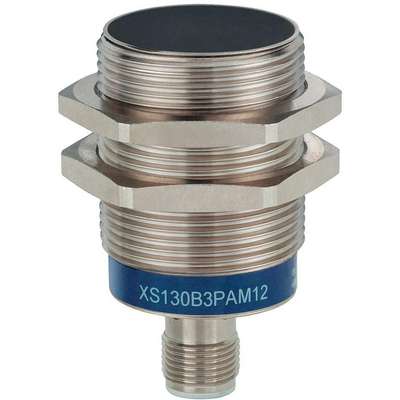

Telemecanique Sensors 500 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 15.0 mm
Hover over image to magnify
#922237-4 | Pkg Qty: 1
$156.24 pkg | $156.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Metal
NEMA Type
4X
Basic Proximity Sensor Case Material
Metal
Operating Frequency
500 Hz
Brand
TELEMECANIQUE SENSORS
Operating Temperature Range
-1 deg. F to 158 deg. F
Case
Nickel Plated Brass
Output Mode
NO
Case Material
Nickel Plated Brass
Power Requirement
12 to 48VDC
Circuit Type
3 Wire NPN
Proximity Sensing Method
Inductive
Connector Type
M12
Proximity Sensor Diameter
30.0 mm
Description/Special Features
Extended Range
Proximity Sensor Operating Frequency
500 Hz
Detecting Distance
15mm
Proximity Sensor Output Circuit Type
3 Wire NPN
Diameter
30 mm
Proximity Sensor Power Requirement
12 to 48 VDC
Electrical Connection
4 Pin M12 Connector
Proximity Sensor Style
Cylindrical Proximity Sensor
IP Rating
67, 69K
Proximity Sensor/Switch Electrical Connection
4 Pin M12 Connector
Item
Cylindrical Proximity Sensor
Sensing Method
Inductive
Length
2.3 in.
Sensor Type
Inductive
Maximum Current Load
200mA
Shielded/Unshielded
Shielded
Maximum Detecting Distance
15 mm
Shipping Weight
.35 lb.
Maximum Load
200 lb.
Type
Cylindrical
Mfr. Part Number
XS630B1NAM12
Voltage Range
12-48 VDC
NEMA Rating
4X
General
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Special Features
Extended Range
Shield
Shielded
Standards
CSA Certified, CE Compliance, RoHS
Shielded / Unshielded
Shielded
Voltage Type
DC
Product Description
This inductive proximity sensor is engineered for high-pressure, high-temperature washdown applications in food and beverage handling facilities.
