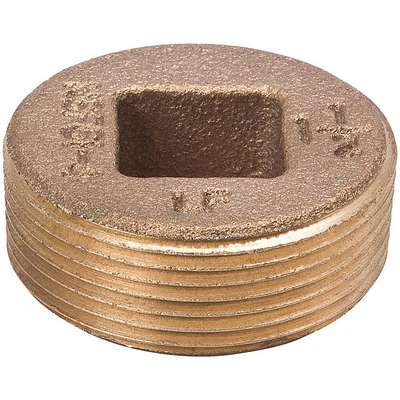

Countersink Plug: Brass, 1 in Fitting Pipe Size, Male NPT, Class 125

Hover over image to magnify
Countersunk Plug,1 In, Brass
PI_Asset_1355531
Countersunk Plug,1 In, Brass
PI_Asset_1355531

#922233-3 | Pkg Qty: 1

$8.69 pkg | $8.69 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Brass
Package Quantity
1
Brand
APPROVED SUPPLIER
Pipe Size
1 in.
Connection Type
MNPT
Shape
Plug
Item
Countersink Plug
Shipping Weight
.26 lb.
Maximum Pressure
125 psi
Temperature Range (Deg. F)
-20 to 400 deg. F
Mfr. Part Number
22UL66
General
Class/Pressure
Class 125 125 psi
Low Lead Compliance Level
Certified
Fitting Pipe Size
1 in
Nominal Pipe Size
1 in
For Use With
Low Pressure Plumbing Applications Including Air, Water, Natural Gas, and Steam
Pressure Level
Low Pressure (100-299 psi)
Includes Pre-Applied Thread Sealant
No
Standards
ASTM B62, ASME B16.15, ANSI B 1.20.1
Includes Seal
No
Threading
NPT
Low Lead Certified Standard
NSF61; AB1953

Product Description

Low-Lead Red Brass Fittings—Class 125

  • Max. pressure: 125 psi Temp. range: -20° to 400°F Resist corrosion from water, heat, saltwater, acids, minerals, and heavy soils. NPT connections. For use with air, water, natural gas, and steam in commercial and residential buildings. Material meets ASTM B584 standards. Dimensions for fittings meet ASME B16.15, for unions A-A-59617, and for flanges ASME B16.24. Threads meet ANSI B1.20.1 standards. NSF 61 Listed. Certified for use in potable water applications.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
