TE-CO

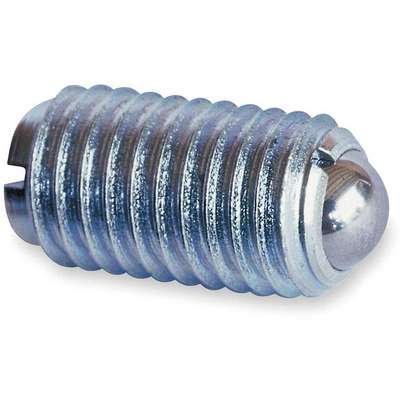

Spring Plunger, Thread Size #6-40, Thread Length 5/16", Plunger Projection 0.0230"

Hover over image to magnify
Plunger,Ball W/Out Lock,#6-40,
Plunger,Ball W/Out Lock,#6-40,

#922208-8 | Pkg Qty: 5

$35.05 pkg | $7.01 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Ball Material
440 Stainless Steel
Mfr. Part Number
52903X
Body Length
5/16 in.
Mounting Type
Threaded
Body Material
Stainless Steel
Overall Length
5/16 in.
Brand
TE-CO
Package Quantity
5
Finish
303 Stainless Steel
Product Type
Spring Plunger
Force
0.50 Initial, 1.00 Final
Shipping Weight
.01 lb.
Function
Smallest And Lightest Spring Loaded Device, Side Tolerant, Controlled End Forces
Spring Material
302/304 Stainless
Handle Type
Slotted Drive
Thread
Fully Threaded
Item
Spring Plunger
Thread Length
5/16 in.
Locking
No
Thread Size
#6-40
Material
303 Stainless Steel
Type
Without Locking Element
General
Application
Controlled End Force, Side Tolerant, Smallest and Lightest Spring-Loaded Device
Plunger Dia.
0.0780 in
Final Nose Force
1 lb
Plunger Material
Stainless Steel
Initial Nose Force
0.5 lb
Plunger Projection
0.0230 in
Nose Shape
Ball

Product Description

Ball Plungers

  • Sold in pack of 5
  • Smallest and lightest spring-loaded devices with controlled end forces. Offer a short travel range and high strength in side-load applications. Ball material for steel plungers is 404 stainless steel; for stainless steel plungers, ball is 440 stainless steel. Use zinc plated for light end forces, and black oxide for standard end forces.
