PARKER

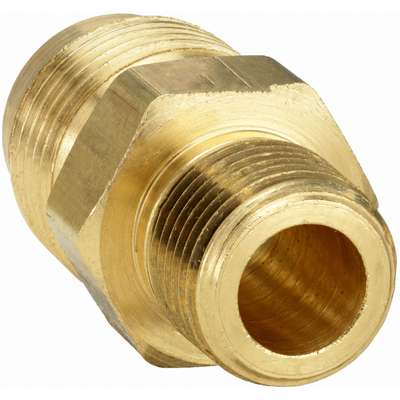

Male Connector: For 5/8 in Tube OD, 1/4 in Pipe Size, Flared x MNPT, 1 25/32 in Overall Lg, 10 PK

Hover over image to magnify
Male Connector,45 Deg.,Tube x
PI_Asset_928452
Male Connector,45 Deg.,Tube x
PI_Asset_928452

#922082-2 | Pkg Qty: 10

$128.50 pkg | $12.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PARKER
Package Quantity
10
Item
Male Connector
Shipping Weight
1.55 lb.
Mfr. Part Number
48F-10-4
General
End Connection Type
Flared
Flare Angle
45 Degrees
Fitting Pipe Size
1/4 in
For Tube OD
5/8 in
Fitting Side A Tube Outer Diameter
5/8 in
For Tube Outside Diameter
5/8 in
Fitting Side B Pipe Size
1/4 in

Product Description

Brass and Low-Lead Brass 45° and Flare Fittings

  • Temp. range: -65° to 250°F Pkg. qty.: 10, except where noted
  • May be disassembled and reassembled repeatedly. Resist mechanical pull-out and are suitable for use with thin-wall tubing. Material and working pressure of tubing must be determined before using in a specific application. Suitable for use in refrigeration equipment, air compressors, and machinery. Can be used with flareable copper, brass, aluminum, and welded steel hydraulic tubing.
  • UL Listed for flammable liquids. Meet SAE J512 and J513 standards. Low-Lead fittings are certified for use in potable water applications.

Expertly Selected Product Pairings

Short Nut, Brass, 5/8
$65.40 pkg | $6.54 ea
Item: 911312-5 | Pkg Qty: 10
Long Nut,5/8 In,Tube,Brass,Pk
$109.30 pkg | $10.93 ea
Item: 913062-3 | Pkg Qty: 10
Flare Gasket,45 Deg.,Copper,
$28.30 pkg | $2.83 ea
Item: 922361-5 | Pkg Qty: 10
Short Nut,45deg,Brass,Tube,5/8
$68.70 pkg | $6.87 ea
Item: 931360-8 | Pkg Qty: 10

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
