MOEN

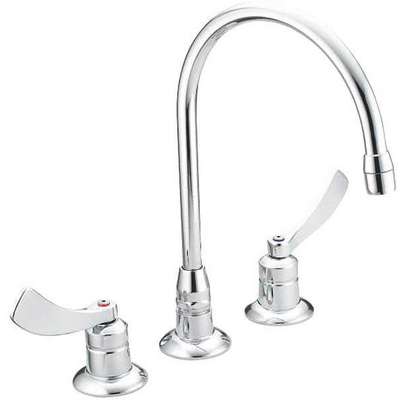

Gooseneck Bar Faucet: Moen, M-Dura, Chrome Finish, 1.5 gpm Flow Rate, 8 in Spout Reach

Hover over image to magnify
Bathroom Faucet,Chrome, 13-1/4
Bathroom Faucet,Chrome, 13-1/4

#922040-1 | Pkg Qty: 1

$320.23 pkg | $320.23 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
ADA Compliance
Yes
Material
Brass
Brand
MOEN
Mfr. Part Number
8225smf15
CEC Compliant
CEC Compliant
Number of Holes
3
Connection Size
1/2 in. IPS
Operation
Manual
Drain Type
None
Outlet Type
Aerated
Faucet Spout Shape
Gooseneck
Package Quantity
1
Finish
Chrome
Shipping Weight
6.95 lb.
Flow Rate
1.50 gpm
Spout Length
8 in.
Handle Type
Lever
Temperature Control
Yes
Height
13-1/4 in.
Valve Type
Ceramic
Item
Bathroom Faucet
General
Faucet Activation
Manual
Mounting Type - Faucet
Deck
Faucet Body Material
Brass
Number of Handles
2
Faucet Finish
Chrome
Plumbing Brand
Moen
Faucet Handle Material
Metal
Replacement Cartridge Item Number
4NEF5, 4NEF6
Faucet Handle Type
Wristblade
Replacement Cartridge Mfr. Model Number
52000, 52001
Faucet Installation Style
Widespread
Spout Height
13 1/4 in
Faucet Type
Bar Faucet
Spout Reach
8 in
Flow Outlet Type - Faucet
Aerated
Standards
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Green Certification/Other Recognition
California Energy Commission (CEC) Certified
Valve Type - Faucets
Hot/Cold Cartridge
Max. Installation Surface Thickness
1 1/2 in
Vandal Resistant Features
Vandal Resistant Screws
Max. Mounting Hole Center Distance
8 in
Water Inlet Connection Size
1/2 in

Product Description

Dual-wristblade-handle three-hole widespread deck-mount bar sink faucets have two wing-shaped handles that users pull toward or push away from themselves to start or stop the flow of water. Each handle is operated separately to control the hot and cold water supplies and adjust the water temperature. Also called paddle handles, wristblade handles can be operated with the wrist. Because they do not need to be gripped to push or pull the handle, wristblade handles can be used by some individuals with disabilities.

Three-hole widespread deck-mount bar sink faucets install into a sink or counter with three holes where the outermost holes are 8" apart when measured from center-of-hole to center-of-hole. They have a tall spout and a compact design, and are typically installed on small sinks in tight areas where food is prepared or beverages are served, such as bars and restaurants. They provide water for drinking, food preparation, or washing tasks.
