#921987-2 | Pkg Qty: 1
$1,009.48 pkg
| $1,009.48 ea
Technical Specifications
Key Specifications
Agency Compliance
CE, FM, U.L. Classified to Canadian Standards and ATEX-ANNEX VIII
Item
Electronic Flowmeter
Brand
GPI
Maximum Pressure
300 psi
Connection Size
2 in.
Maximum Viscosity
530 SSU
Connection Type
FNPT
Mfr. Part Number
03A32GM
Display Type
LCD
Pack Quantity
1
Display Units
gal./L
Pressure Rating
300
Fitting Type
NPT
Repeatability
0.50%
Flow Material
Petroleum Products, Fuels, Lubricants
Rotor Type
Nylon
Flow Range
3 to 30 gpm
Shipping Weight
3.85 lb.
Flowmeter Group
Electronic Flowmeter
Special Features
Battery Powered, Total Indication
Housing Material
Aluminum
Type
Turbine
Includes
Battery
Wetted Materials
316 Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide
General
Accuracy (%)
+/-1.5
Flow Range @ GPH
1,800 to 18,000
Flow Range (GPM)
30 to 300
Flowmeter Product Group
Electronic Flowmeter
Flow Range (LPM)
114 to 1,135
Fluid Temp. Range
14 Degrees to 140 Degrees F

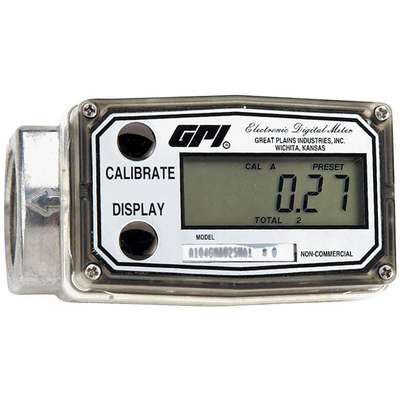

Product Description
Self-contained and can measure both rate and amount of flow; press button to toggle between readings. Registers up to 999,999 gal. Runs approx. 9000 hr. on included batteries. Auto-Off. Unit can be field serviced.
Item Barcode
Flowmeter,Turbine,Alum,30 To
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 13K556 | Flowmeter, Turbine,Alum, |
|
UNSPSC CODES | 41112501 | |
|
VMRS (ATA) CODES | 053-007-022 | Flowmeter, Turbine,Alum, |
