SQUARE D

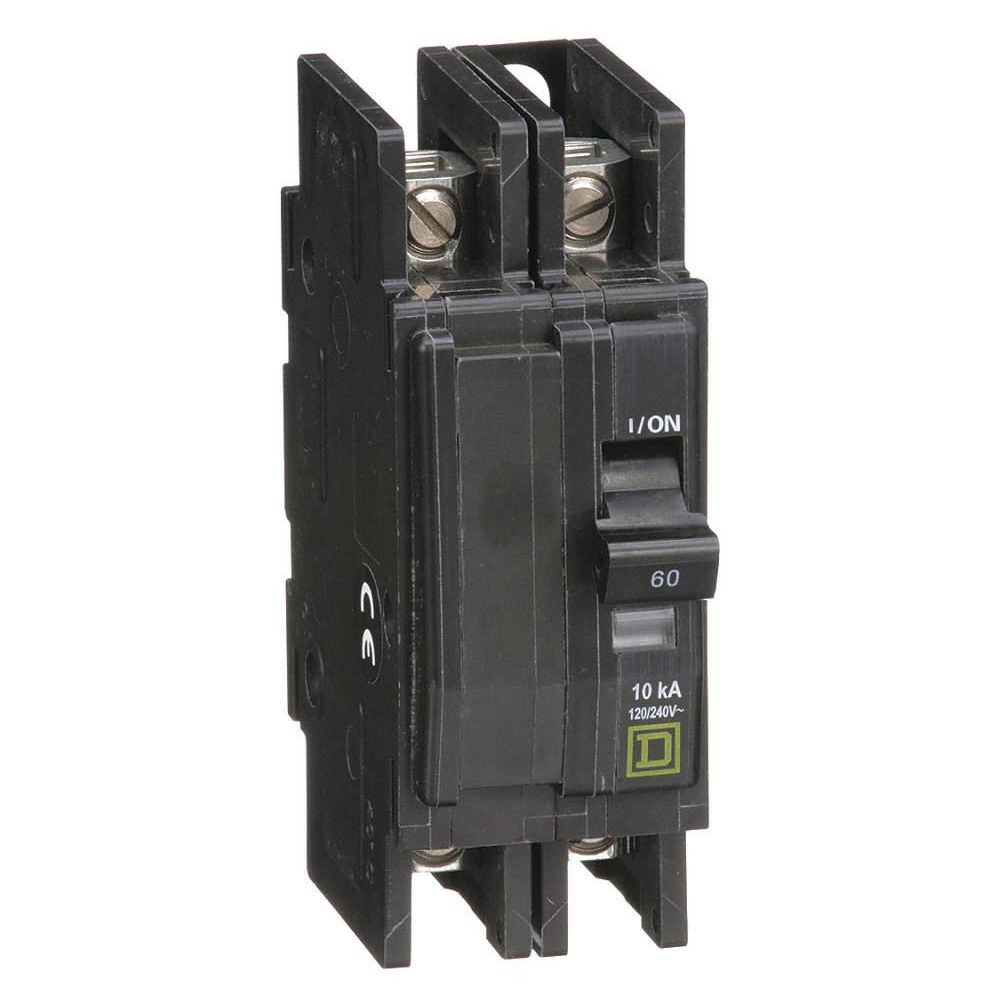

Square D Unit Mount Circuit Breaker, QOU, Number of Poles 2, 60 Amps, 120/240VAC, Standard

Hover over image to magnify

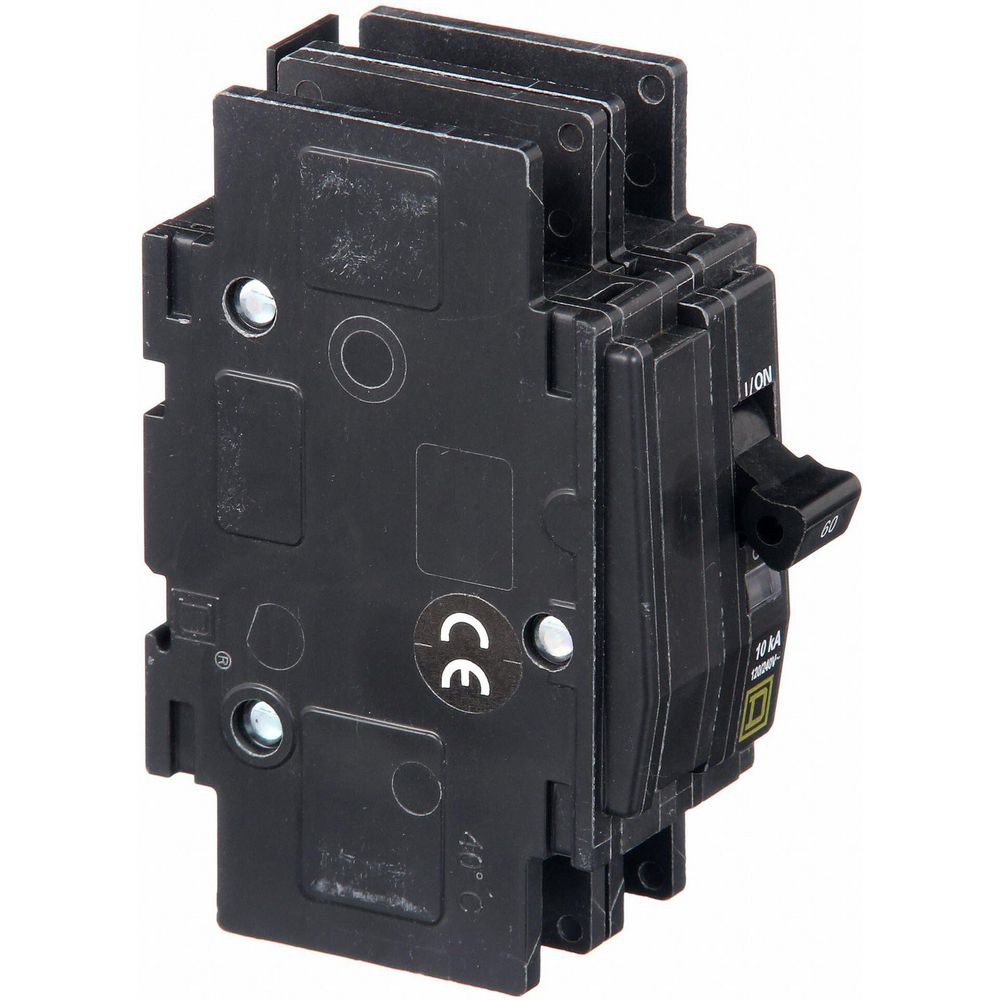

Unit Mount Circuit Breaker,Qou,
PI_Asset_1370601
Unit Mount Circuit Breaker,Qou,
PI_Asset_1370601

#921983-7 | Pkg Qty: 1

$117.46 pkg | $117.46 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120/240VAC
Air @ 120 VAC
10kA
Maximum DC Voltage
48
Air @ 240 VAC
10kA
Maximum Wire Size
2 AWG
Air @ 48 VDC
5kA
Mfr. Part Number
QOU260
Amperage
60 A
Minimum Wire Size
14 AWG
Amps
60 A
Number of Poles
2
Brand
SQUARE D
Package Quantity
1
Circuit Breaker Type
Standard
Phase
Single
DC Voltage Rating
48VDC
Series
QOU
Depth
2.95 in.
Shipping Weight
.75 lb.
Frame Size
100A/QOU
Terminal Connection
Slotted Box Lug (Reversible Line and Load)
High Amp Trip Setting
81
Type
Free Standing
Instantaneous Trip
Fixed
Voltage
120 - 240VAC
Item
Miniature Circuit Breaker
Width
1-1/2 in.
Length
4.05 in.
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Surface/DIN Rail
AIR @ 240VAC
10kA
Compatible Panelboard/Load Center Series
QO
AIR @ 48VDC
5kA
For Use With
Air Conditioning and Refrigeration Equipment, Heating
Circuit Breaker Actuator
Toggle
Standards
CSA Certified, HACR, IEC

Product Description

QOU, QDL, and QBL Circuit Breakers

  • QOU
  • as HACR type (except 10A) 48VDC rated at 5K AIR
  • Reversible line and load lugs for flush- or surface-mount wiring on 10 to 70A units. 35mm DIN/EN 50022 mountable. 4.05"L (4.45"L on 80 to 125A) x 0.75"W per pole x 2.98"D.
