LUBE DEVICES

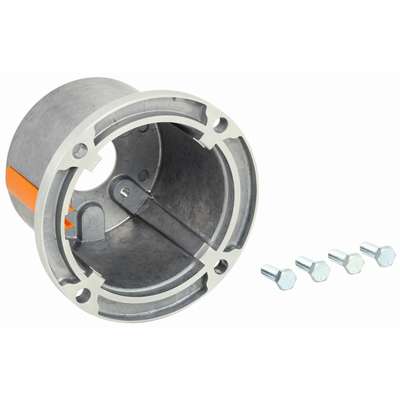

Aluminum Alloy Pump/Motor Adapter with 4F17 Flange Style and 56C-145TC Motor Frame

Hover over image to magnify
Pump/Motor Adapter,4F17,56C-
PI_Asset_930554
Pump/Motor Adapter,4F17,56C-
PI_Asset_930554

#921801-7 | Pkg Qty: 1

$56.73 pkg | $56.73 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
LUBE DEVICES
Package Quantity
1
Item
Pump/Motor Adapter
Shipping Weight
2.2 lb.
Mfr. Part Number
6029
General
Max. Coupling Size
3 1/2 in
Number of Bolts
4
Motor Frame Size
56C-145TC
Pilot Dia.
1.78 in
Mounting Orientation - Power Units
Horizontal or Vertical
SAE Flange Mount
4F17 4 Bolt

Product Description

Hydraulic pump motor adapters are used to correctly align and attach the hydraulic pump to the motor. The adapter can also be used to attach the pump and motor unit to another mounting surface, such as hydraulic reservoir lid or other system component.

Pump and motor mounts secure hydraulic pumps and motors to hydraulic tank lids or other mounting surfaces. Hydraulic motors and pumps are used to power hydraulic systems and move hydraulic fluid through the system. Motors and pumps can cause vibration that results in excess noise or can strain tanks or mounting surfaces. Hydraulic motor mounts have a stiff surface to provide additional support. Dampening bars help reduce noise and vibration, and adapters ensure pumps and mounts are correctly aligned.

Item Barcode
9218017
Pump/Motor Adapter,4F17,56C-
 NameItemDescription
Grainger DropshipGrainger Dropship6Z070Pump/Motor Adapter,4F17,
UNSPSC CODESUNSPSC CODES26101406
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Pump/Motor Adapter,4F17,
