BRYANT

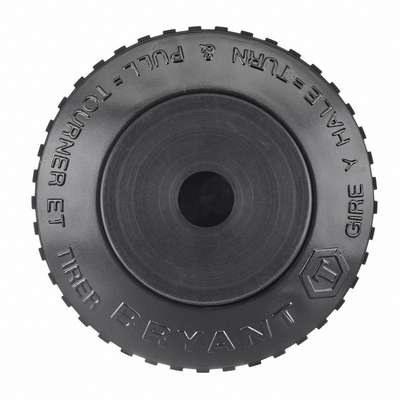

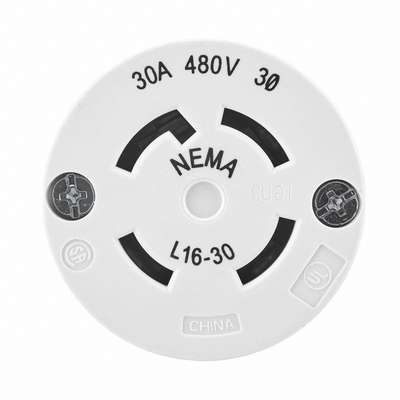

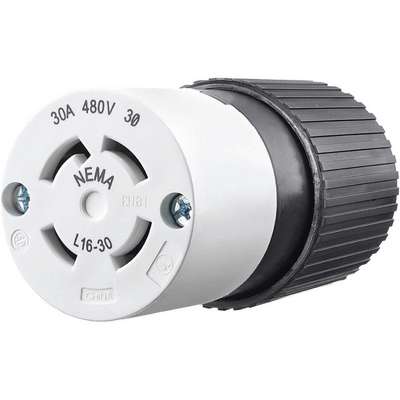

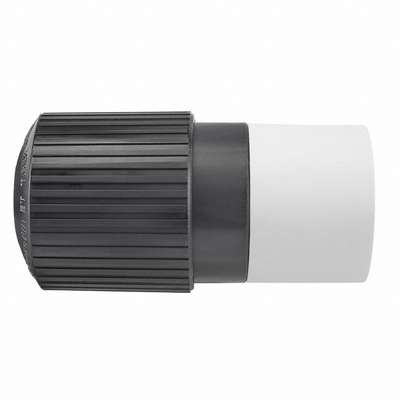

Bryant 30 Amp Industrial Grade Locking Connector, L16-30R NEMA Configuration, Black/White
Hover over image to magnify
#921722-3 | Pkg Qty: 1
$82.29 pkg | $82.29 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Mfr. Part Number
71630NC
Amps
30 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
BRYANT
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
L16-30
Color Family
Black / White
NEMA Plug Configuration
L16-30R
Connection Orientation
Straight
NEMA Receptacle Configuration
L16-30R
Cord Size
0.465 in to 1.150 in
Number of Poles
3
Corrosion Resistant
No
Number of Wires
4
Current Rating
30 A
Overall Length
2.13 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Three
Grade
Industrial
Polarized
Yes
Grounding
Grounded
Power Indicating Light
No
HP
10 HP
Power Indicator
No
Horsepower
10 hp
Shipping Weight
.35 lb.
Housing Material
Nylon
Shrouded
No
IP Rating
IP20
Standards
CSA Certified, UL Listed
Item
Locking Connector
Voltage
480VAC
Material
Nylon
Voltage Rating
480V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L16-30R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
480V AC
HP
10.0
Product Description
Nylon device is chemical- and impact-resistant. Incorporates a true, one-piece grounding system. Plugs and Connectors are polarized and moisture-resistant. Receptacles are single locking.
Expertly Selected Product Pairings
Item Barcode
Lkg Conn, 30A 3PH 480V, L16-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YX07 | LKG CONN, 30A 3PH 480V, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | LKG CONN, 30A 3PH 480V, |
