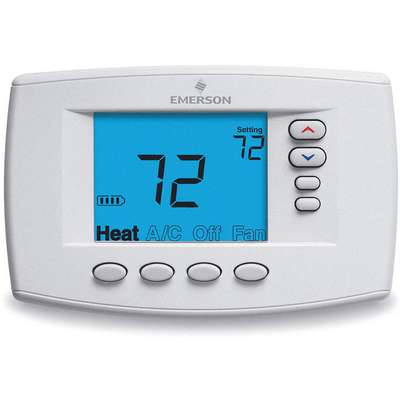

Emerson Low Voltage Thermostat: Heat and Cool, Manual, 2 Heating Stages - Conventional System
#921709-5Pkg Qty: 1
$186.59 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
EMERSON
Color Family
White
Depth
1-1/4 in.
Display Type
LED, Backlit
Height
4-5/8 in.
Item
Low Voltage Thermostat
Mfr. Part Number
1F95EZ-0671
Mounting Position
Horizontal
Package Quantity
1
Power Source
Hardwired/Battery/Power Stealing
Shipping Weight
.85 lb.
Voltage
24 VAC
Width
5-7/8 in.
Brand
EMERSON
Mounting Position
Horizontal
Color Family
White
Package Quantity
1
Depth
1-1/4 in.
Power Source
Hardwired/Battery/Power Stealing
Display Type
LED, Backlit
Shipping Weight
.85 lb.
Height
4-5/8 in.
Voltage
24 VAC
Item
Low Voltage Thermostat
Width
5-7/8 in.
Mfr. Part Number
1F95EZ-0671
General
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Backlit Screen
Yes
Backlit Type
Touch Activated or Continuous with Common Wire
Changeover Type
Manual
Compatible System Type
Electric Forced Air Furnaces, Heat Pump with Aux, Millivolt, Gas Forced Air Furnaces
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Differential Heat
0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F
Differential Type
Adjustable
Dual Transformer Compatible
Yes
Electrical Connection Type
Hardwired
Fan Settings
Auto-On
Features
Blue Screen
Filter Change Reminder
Yes
For Use With
Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-Wire Zone Valve
Includes
Mounting Hardware
Includes Batteries
Yes
Includes Positive Off
Yes
Key Pad Lockout
Yes
Low Battery Indicator
Yes
Maximum Control Temperature
99 Degrees F
Maximum Operating Humidity
0.9
Millivolt Compatible
Yes
Minimum Control Temperature
45 Degrees F
Number of Cooling Stages - Conventional System
2
Number of Cooling Stages - Heat Pump System
2
Number of Heating Stages - Conventional System
2
Number of Heating Stages - Heat Pump System
4
Number of Zones
1
Operating Humidity Range
0% to 90% RH
Sensor Location
Remote
Sensor Type
Cooling, Heating
Smart Connectivity
No Connectivity
System Settings
Cool-Emergency Heat-Heat-Off
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Temperature Control Range
45 Degrees to 99 Degrees F
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Temperature Limiting
Yes
Temperature Readout
Yes
Temperature Scale
Fahrenheit/Celsius
Temperature Sensitivity
+/-1 Degrees F
Temperature settings per day
0, 2, 4
Temporary Program Override
Yes
Temporary Temperature Hold
Yes
Terminal Designations
6, C, G, L, O/B, RC, RH, W/E, W2, Y, Y2
Thermostat Type
Low Voltage
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Number of Cooling Stages - Conventional System
2
Backlit Screen
Yes
Number of Cooling Stages - Heat Pump System
2
Backlit Type
Touch Activated or Continuous with Common Wire
Number of Heating Stages - Conventional System
2
Changeover Type
Manual
Number of Heating Stages - Heat Pump System
4
Compatible System Type
Electric Forced Air Furnaces, Heat Pump with Aux, Millivolt, Gas Forced Air Furnaces
Number of Zones
1
Differential Cool
0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F
Operating Humidity Range
0% to 90% RH
Differential Heat
0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F
Sensor Location
Remote
Differential Type
Adjustable
Sensor Type
Cooling, Heating
Dual Transformer Compatible
Yes
Smart Connectivity
No Connectivity
Electrical Connection Type
Hardwired
System Settings
Cool-Emergency Heat-Heat-Off
Fan Settings
Auto-On
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Features
Blue Screen
Temperature Control Range
45 Degrees to 99 Degrees F
Filter Change Reminder
Yes
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
For Use With
Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-Wire Zone Valve
Temperature Limiting
Yes
Includes
Mounting Hardware
Temperature Readout
Yes
Includes Batteries
Yes
Temperature Scale
Fahrenheit/Celsius
Includes Positive Off
Yes
Temperature Sensitivity
+/-1 Degrees F
Key Pad Lockout
Yes
Temperature settings per day
0, 2, 4
Low Battery Indicator
Yes
Temporary Program Override
Yes
Maximum Control Temperature
99 Degrees F
Temporary Temperature Hold
Yes
Maximum Operating Humidity
0.9
Terminal Designations
6, C, G, L, O/B, RC, RH, W/E, W2, Y, Y2
Millivolt Compatible
Yes
Thermostat Type
Low Voltage
Minimum Control Temperature
45 Degrees F
Product Description
Standard thermostats are most commonly used to control the temperature of conventional forced air systems or heat pumps in residential and light commercial settings, such as offices, restaurants, or retail stores. They're programmable and allow users to select temperature settings for different times of the day or different days of the week.
