DELHI

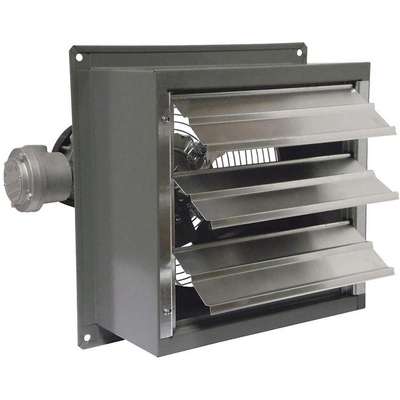

Delhi Shutter Mounted Hazardous Location Exhaust Fan: 12 in Blade, 1 Speed, 1/3 hp, 1,640 cfm, 115V AC

Hover over image to magnify
Exhaust Fan, Hazardous
Exhaust Fan, Hazardous

#921649 | Pkg Qty: 1

$842.51 pkg | $842.51 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
cETLus
Motor HP
1/3
Bearing Type
Ball
Mounting Position
Horizontal
Blade Diameter
12 in.
Number of Blades
3
Blade Material
Aluminum
Package Quantity
1
Brand
DELHI
Phase
1
Height
17-1/4 in.
Shaft Diameter
1/2 in.
Item
Shutter Mounted Explosion Proof Exhaust Fan
Shipping Weight
43.9 lb.
Mfr. Part Number
SD12-XPF
Voltage
115/208-230 VAC
Motor Enclosure
Explosion Proof Fan Cooled
Width
17-1/4 in.
General
Assembled
Fully Assembled
Maximum Airflow
1,640 cfm
Exhaust Airflow @ 0.000 in SP
1,640 cfm
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.100 in SP
1,540 cfm
Maximum Exhaust Airflow @ 0.000 in SP
0 to 2000 cfm
Exhaust Airflow @ 0.250 in SP
1,390 cfm
Maximum Noise Level
12 sones
Fan Style
Shutter-Mounted
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Fan Voltage
115/208-230V AC
Motor Enclosure Design
Totally Enclosed Fan Cooled (TEFC)
Flange Depth
1 1/4 in
Motor Horsepower
1/3 hp
For Cut-Out Height
15 in
Motor Speed
1,625 RPM
For Cut-Out Width
15 in
Nameplate Voltage
115V AC
For Maximum Wall Thickness
6 in
Noise Level @ 0.000 in SP @ 5 ft
12 sones
For Minimum Wall Thickness
6 in
Noise Level @ 0.100 in SP @ 5 ft
11.3 sones
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Nominal Voltage
115V AC
Full Load Current
6.6 A
Number of Fans
1
Guard Finish
Chrome
Speed Controllable
No
Guard Type
Intake
Square Opening Required
10-1/2 to 20 in
Includes
EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Supply Airflow @ 0.000 in SP
1,640 cfm
Includes Dehumidistat
No
Vent Design
Ductless
Includes Grill
No
Ventilation Type
Exhaust
Includes Motor
No
Venturi Depth
5/8 in
Manufacturer Warranty Length
1 yr
Venturi Diameter
1/8 in

Product Description

This easy-to-install DELHI shutter mounted explosion proof exhaust fan requires little maintenance and features a totally enclosed, ball bearing motor with thermal overload protection. The fan blades are constructed of well-balanced, heavy-gauge aluminum. Designed with a rugged steel welded box housing that has a durable, powder-coated finish. The aluminum louver shutters are supported by long life nylon bushings. Heavy wire chrome-plated OSHA guards provide protection on intake side of fan. Shipped assembled.
