ARO

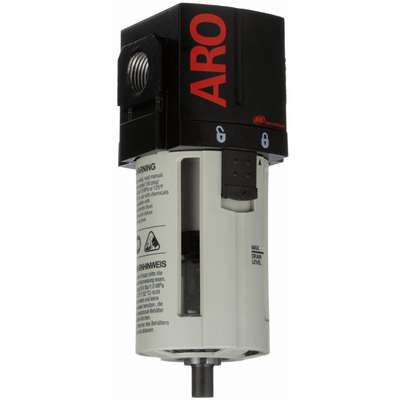

Compressed Air Filter: Particulate, 1/2 in NPT, 5 micron, 197 cfm, 150 psi Max Op Pressure, 2000
#921612-9Pkg Qty: 1
$126.79 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Bowl Material
Polycarbonate
Brand
ARO
Depth
2.76 in.
Filter Rating
5 micron
Housing
Aluminum
Housing Material
Aluminum
Inlet/Outlet
1/2
Item
Compressed Air Filter
Max. Pressure (Range)
150 psi
Maximum Flow
197 cfm
Maximum Flow (CFM)
197 CFM
Maximum Pressure
150 psi
Maximum Temperature
125 deg. F
Maximum Temperature (Deg. F)
125
Mfr. Part Number
F35341-400
NPT
1/2 in.
Overall Height
7.05 in.
Overall Width
2.87 in.
Package Quantity
1
Pipe Size
1/2 in. NPT
Product Size
Standard
Shipping Weight
1.45 lb.
Type
General Purpose
Width
2.87 in.
Air Consumption
scfm
Maximum Temperature
125 deg. F
Bowl Material
Polycarbonate
Maximum Temperature (Deg. F)
125
Brand
ARO
Mfr. Part Number
F35341-400
Depth
2.76 in.
NPT
1/2 in.
Filter Rating
5 micron
Overall Height
7.05 in.
Housing
Aluminum
Overall Width
2.87 in.
Housing Material
Aluminum
Package Quantity
1
Inlet/Outlet
1/2
Pipe Size
1/2 in. NPT
Item
Compressed Air Filter
Product Size
Standard
Max. Pressure (Range)
150 psi
Shipping Weight
1.45 lb.
Maximum Flow
197 cfm
Type
General Purpose
Maximum Flow (CFM)
197 CFM
Width
2.87 in.
Maximum Pressure
150 psi
General
Air Inlet Type
NPT
Air Outlet Size
1/2 in
Air Outlet Type
NPT
Bowl Material - Air Treatment
Polycarbonate
Bowl Size - Air Treatment
1.9 oz
Connection Size - Air Treatment
1/2 in NPT
Drain Port Size
Push Type
Drain Type
Manual
Filter Bowl Capacity
1.9 oz
Filter Bowl Guard Included
Yes
Filter Bowl Guard Material
Nylon
Filter Bowl Material
Plastic
Filter Element Material
Polyethylene
Filter Media
Polycarbonate
Filter Rating (Microns)
5
Filter Rating - Air Treatment
5 micron
For Fluid Type
Liquid Contaminant, Oil
For Removal Of
Oil, Particles, Water
For Substance Type
Airborne Solid, Liquid Contaminants, Oil Aerosol
Max. Flow - Air Treatment
197 cfm
Max. Flow Range - Air Treatment
151 to 200 cfm
Max. Incoming Pressure - Air Treatment
150 psi
Modular Connection
Modular Connection
Number of Air Inlets
1
Number of Air Outlets
1
Size - Air Treatment
Standard
System Location
Air Line
Air Inlet Type
NPT
Filter Rating (Microns)
5
Air Outlet Size
1/2 in
Filter Rating - Air Treatment
5 micron
Air Outlet Type
NPT
For Fluid Type
Liquid Contaminant, Oil
Bowl Material - Air Treatment
Polycarbonate
For Removal Of
Oil, Particles, Water
Bowl Size - Air Treatment
1.9 oz
For Substance Type
Airborne Solid, Liquid Contaminants, Oil Aerosol
Connection Size - Air Treatment
1/2 in NPT
Max. Flow - Air Treatment
197 cfm
Drain Port Size
Push Type
Max. Flow Range - Air Treatment
151 to 200 cfm
Drain Type
Manual
Max. Incoming Pressure - Air Treatment
150 psi
Filter Bowl Capacity
1.9 oz
Modular Connection
Modular Connection
Filter Bowl Guard Included
Yes
Number of Air Inlets
1
Filter Bowl Guard Material
Nylon
Number of Air Outlets
1
Filter Bowl Material
Plastic
Size - Air Treatment
Standard
Filter Element Material
Polyethylene
System Location
Air Line
Filter Media
Polycarbonate
Product Description
General Purpose Filter helps extend air tool service life when installed upstream from the regulator and lubricator. Protects against contamination by rust, scale, condensed water, and other debris.
