SPEEDAIRE

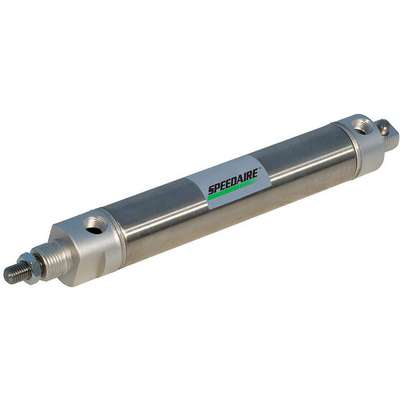

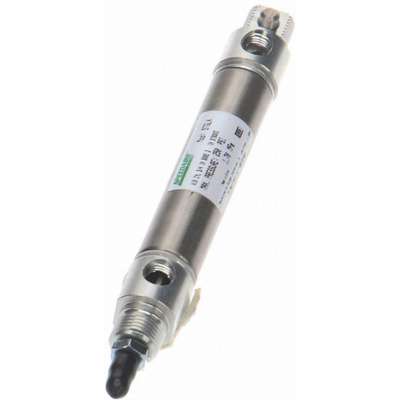

3/4" Air Cylinder Bore Dia. with 2" Stroke Stainless Steel , Pivot Mounted Air Cylinder
Hover over image to magnify
#921585-9 | Pkg Qty: 1
$70.12 pkg | $70.12 ea
Unavailable
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
End Cap Material
Aluminum
Air Cylinder Mount
Pivot
Finish
Hard Coat Anodized
Air Cylinder Type
Round Body
Item
Air Cylinder
Body Material
Stainless Steel
Maximum Pressure
250 psi
Brand
SPEEDAIRE
Mfr. Part Number
NCDMC075-0200
Cushion Type
None
Mount
Pivot
Cylinder Action
Double Acting
Mounting Style
Rear Pivot
Cylinder Ports
1/8 in. NPT
Overall Length
6.53 in.
Cylinder Type
Round
Package Quantity
1
Dimension A
6.53 in.
Port Size
1/8 in. NPT
Dimension B
0.86 in.
Shipping Weight
.28 lb.
Dimension C
6-1/4 in.
Stroke
2 in.
Dimension D
5/8 in.-18 UNF
Tube Material
Stainless Steel
Dimension E
1/8 in. NPT
Type
Double Acting
Dimension F
0.38 in.
General
Action Type
Double Acting
Piston Rod
Stainless Steel
Air Cylinder Bore Dia.
3/4 in
Piston Rod Material
Stainless Steel
Air Cylinder Product Group
Air Cylinder
Rod Dia.
0.25 in
Bore Dia.
3/4 in
Rod Thread Length
0.5 in
End Caps
Aluminum
Rod Thread Size
1/4"-28 UNF
Features
Switched
Single Acting/Double Acting
Double Acting
Magnetic Piston
Yes
Tang Width
0.38"
Nose Mount Thread
5/8"-18 UNF
Product Description
Single-Acting Stainless Steel Body Air Cylinders
- Spring return Operating pressure range: 25 to 250 psi Operating temp. range: 40° to 140°F Include magnetic piston for use with autoswitches Permanently lubricated, nonrepairable cylinders are dimensionally interchangeable with a number of manufacturers' cylinders. Chrome-plated carbon steel piston rod and stainless steel tube improve corrosion resistance. Piston magnet allows autoswitches to sense stroke piston. NPT ports. Rubber bumper. Double-Acting Stainless Steel Body Air Cylinders
- Operating pressure range: 8 to 250 psi Operating temp. range: 40° to 140°F Include magnetic piston for use with autoswitches Permanently lubricated, nonrepairable cylinders are dimensionally interchangeable with a variety of manufacturers' cylinders. Stainless steel tube and chrome-plated carbon steel piston rod improve corrosion resistance. Piston magnet allows autoswitches to sense stroke piston. NPT ports.
