EATON

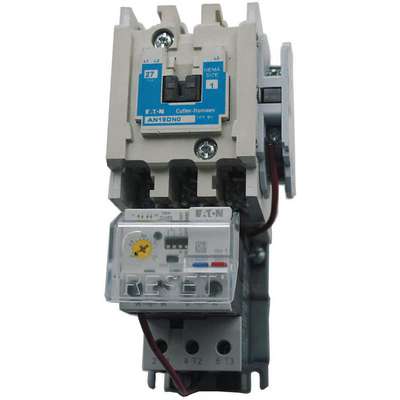

Eaton NEMA Magnetic Motor Starter, 120VAC Coil Volts, Overload Relay Amp Setting: 9 to 45A
Hover over image to magnify
#921563-2 | Pkg Qty: 1
$1,053.71 pkg | $1,053.71 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Nonreversing
Mfr. Part Number
AN19GN0A5E045
Amps AC
45
NEMA Enclosure Type
Open
Brand
EATON
NEMA Rating
Open
Coil Volts
120 VAC
Number of Poles
3
Depth
8 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Shipping Weight
4.15 lb.
Enclosure Type
Open
Starter Type
NEMA Style
Height
5 in.
Type
NEMA
Hz
50/60
Width
6 in.
Item
NEMA Magnetic Motor Starter
General
Aux. Contact Configuration
1NO
HP @ 3 Phase - 240V
15 hp
Auxiliary Contact Form
1NO
HP @ 3 Phase - 460V
25
Features
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 3 Phase - 480V
25 hp
HP @ 1 Phase - 120V
3 hp
HP @ 3 Phase - 575V
25 hp
HP @ 1 Phase - 230V
7 1/2 hp
Includes
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 1 Phase - 240V
7-1/2
NEMA Size
2
HP @ 3 Phase - 208V
10 hp
Overload Relay Amp Setting
9 to 45A
HP @ 3 Phase - 230V
15
Standards
UL, CSA, CE, NEMA, IEC/EN 60947 VDE 0660, ISO 13849-1 (EN954-1), RoHS, ATEX directive 94/9/EC, Equipment Group 2, Category 2
Product Description
NEMA Motor Starters
- Eaton Freedom Series NEMA starter with C440 electronic overload Selectable Trip Class 10A, 10, 20 or 30 3-pole with 1NO aux. contact
- CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Nema Magnetic Motor Starter
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6HGE9 | NEMA Magnetic |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | NEMA Magnetic |
